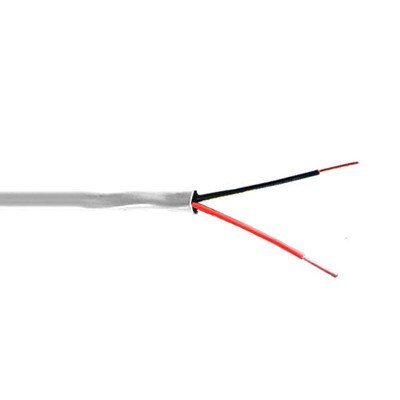

Communication Security Wire, 22AWG, 2C, 1,000'

$55.49
SKU: WR222CSJ10W

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

22AWG cable for Class 2 remote control, signaling and power limited circuits – NEC Article 725-61.

Tech Specs

  • AWG (American Wire Gauge): 22
  • Conductors: 2 (bare copper insulated conductors )
  • Type: 22/2
  • Jacket Color: White
  • Applications: Wiring for Class 2 remote control, signaling and power-limited circuits NEC Article 725-61.

Construction

  • Conductor: 22 AWG Bare Copper
  • Stranding: Solid
  • Insulation Material: Foam Polypropylene
  • Insulation Thickness: 0.006" Nom.
  • Insulated Conductor Diameter: 0.037" Nom.
  • Number of Conductors: 2
  • Lay Length: Parallel
  • Jacket Material: PVC
  • Jacket Thickness: 0.014" Nom.
  • Overall Cable Diameter: 0.101" Nom.
  • Approximate Cable Weight: 9.8 Lbs/1M' Nom.
  • Flame Rating: UL 1581 Vertical Tray Flame Test

Electrical

  • Temperature Rating: -20°C to 75°C
  • Operating Voltage: 300 V RMS Max.
  • Capacitance Between Conductors @ 1 KHz: 20 pF/ft Nom.
  • DC Resistance per Conductor @ 20° C: 16.90 Ohms/1M' Nom.
