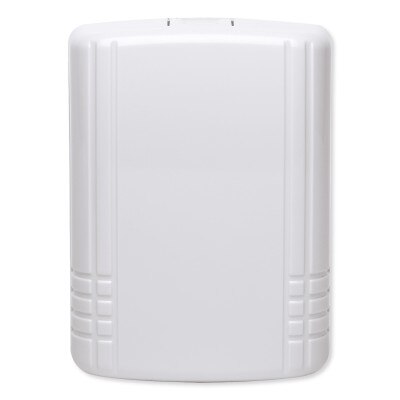

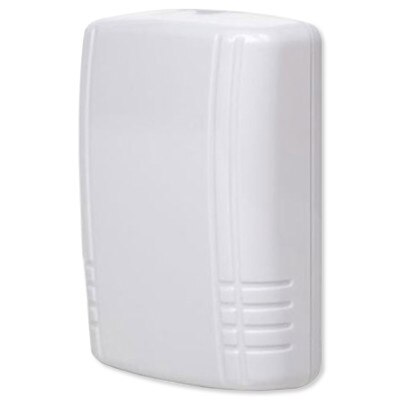

2GIG Super Switch Wireless Takeover Module
Product Description

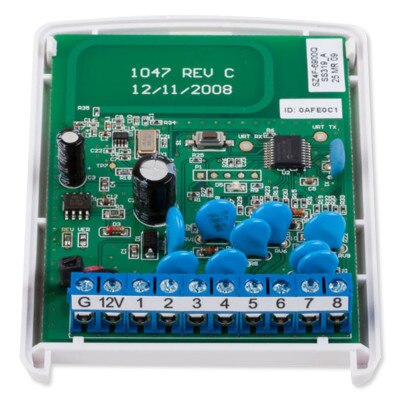

The 2GIG-TAKE-345 Super Switch is 2GIG's wireless takeover module. This unit was designed to convert 8 hardwired zones into eight wireless zones, make installation simple, and work with existing 12-volt control panels. The module is to be mounted next to the existing Control Panel where the hardwired zones are connected. All of the zones on the Super Switch act as supervised wireless zones.
- Eight-channel transmitter
- Converts up to 8 hardwired loops into 8 wireless sensor zones
- 9-16 VDC, 50 mA
- Can be powered by an existing 3rd party Control Panel
- Transmits 345 MHz
- ETL Listed
In The Box:
- Takeover Module
- Mounting Plate
- 2 x Phillips head screws
- 2 x Plastic drywall anchors
- User Manual
NOTE: If the control panel has been removed then a 12-volt power supply with battery backup is required (not supplied).
Tech Specs
- Part Number: 2GIG-TAKE-345
- Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
- Code Outputs: For each of 8 serialized zones: Fault; Restore; Tamper; Low Battery
- Transmitter Frequency: 345.000 MHz (crystal controlled)
- Transmitter Frequency Tolerance: ±15kHz
- Transmitter Bandwidth: 24kHz
- Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
- Unique ID Codes: Over one million different code combinations
- Supervisory Interval: 70 minutes
- Peak Field Strength: Typical 50,000 uV/m at 3m
- Dimensions: 3.54(L) x 2.56(W) x 1.13(H) inches (9.0 x 6.5 x 2.9 cm)
- Weight: 2.85 ounces (80.8 g)
- Housing Material: ABS Plastic
- Color: White
- Operating Temperature: 32° to 120° F (0° to 49° C)
- Relative Humidity: 5 to 95 percent Non-Condensing
- Operating Voltage: 9-16 VDC, 50mA
- Regulatory Listings: UL, FCC, IC
- Included Accessories: Mounting plate, 2 Phillip's head screws, 2 plastic drywall anchors
- Warranty: 2-Year Limited
