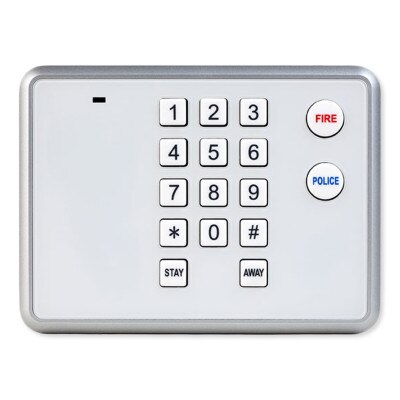

2GIG Wireless Keypad
Product Description
This 2GIG Wireless keypad has tons of great functions such as the ability to arm/ disarm your system, and has fire and panic functions.
- Arms system in Stay or Away Mode
- Disarms system
- Fire and panic emergency functions
- Lithium batteries
- Transmits 345 MHz
- ETL Listed
In The Box:
- Wireless Keypad
- 2 x CR2032 Batteries
- 4 x Phillip's Head Screws
- 4 x Plastic Wall Anchors
- Installation Instructions
Tech Specs
- Part Number: 2GIG-PAD1-345
- Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
- Code Outputs: Key press 0-9; *; #; STAY; AWAY; FIRE; POLICE; Supervisory; Low Battery
- Transmitter Frequency: 345.000 MHz (crystal controlled)
- Transmitter Frequency Tolerance: ±15kHz
- Transmitter Bandwidth: 24kHz
- Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
- Unique ID Codes: Over one million different code combinations
- Supervisory Interval: 70 minutes
- Peak Field Strength: Typical 50,000 uV/m at 3m
- Dimensions: 5.73(W) x 4.25(h) x 1.00(D) inches (14.6 x 0.8 x 2.5 cm)
- Weight: 7.75 ounces (219.7 g)
- Housing Material: ABS plastic
- Color: White with gray trim
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Relative Humidity: 5 to 95 percent Non-Condensing
- Battery: Two (2) Panasonic CR2032 or equivalent Lithium batteries (installed)
- Regulatory Listings: ETL, FCC Part 15, Industry Canada
- Included Accessories: Four (4) Phillip's head screws, four (4) plastic wall anchors
- Warranty: 2-Year Limited
