AprilAire Universal Color Touchscreen Wi-Fi Thermostat with IAQ
Product Description
Monitoring and controlling your indoor air quality is a breeze with the use of an AprilAire 8920W Wi-Fi Thermostat. With features like automatic humidifier and dehumidifier control, automatic air cleaning, and temperature control, an 8920W will ensure that the air in your home is clean, fresh, and comfortable for you and your family. Our Wi-Fi thermostats make it easy to control indoor air quality anywhere and anytime, all from the convenience of your smart phone or tablet. Reduce your energy costs with the push of a button without sacrificing comfort. Experience the health benefits of proper indoor air quality by installing an 8920W today.

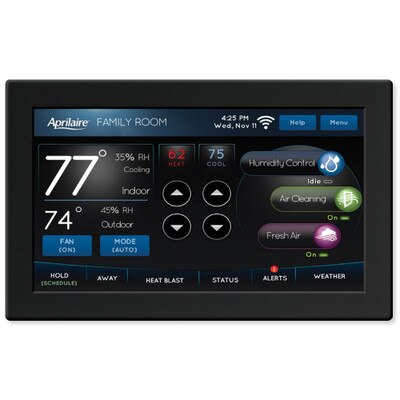

The AprilAire Model 8920W Wi-Fi Thermostat has a large 7 square-inch touchscreen, featuring an exclusive message center that makes programming and setup effortless. It provides real-language instructions and information - no codes to remember, no manual to reference.
The Wi-Fi Thermostat works with any heating and cooling system and is installed by a local HVAC professional. When paired with AprilAire whole-home air quality solutions, the intuitive Model 8920W Wi-Fi Thermostat gives you total control of your comfort.
- Control Humidity: The Model 8920W WiFi Thermostat automatically controls your AprilAire humidification system and dehumidification system and provides confirmation that proper humidification is taking place.
- Control Air Purity: The Model 8920W WiFi Thermostat controls your AprilAire air purifier, allowing you to manage air purity when you need it with Event-Based™ Air Cleaning, and provides easy-to-read confirmation that your air is being cleaned based on your preferences.
- Control Fresh Air: The Model 8920W WiFi Thermostat controls your AprilAire ventilation system, providing fresh air automatically or when it is needed, and confirms when fresh air is being provided.
- Control Temperature: The programmable Model 8920W WiFi Thermostat controls heating and cooling equipment to maintain comfort while saving energy and provides immediate comfort from the cold with the Heat Blast.
In The Box:
- Wi-Fi Thermostat
- Mounting Hardware
NOTE: Requires a computer or mobile device with Wi-Fi and a web browser.
Tech Specs
- Part Number: 8920W
- UPC: 686720892035
- Approvals: FCC, IC, ASHRAE
- Warranty: 5-Year Limited
Environment
- Temperature:
- Thermostat (Operating): 32° to 120°F (0° to 48°C)
- Temperature Equipment Control Module (Operating) 32° to 158°F (0° to 70°C)
- Shipping: -30° to 150°F (-34° to 65°C)
- Operating Humidity: 5 to 90 percent relative humidity (RH) non-condensing
Electrical
- Operating Voltage: 24 VAC (18 – 30 VAC)
- Current:
- Maximum: 2.5A (total), 1.0A (single output)
- Maximum Surge: 5A
Thermal
- Outdoor, Remote, Leaving and Return Temperature Sensor: Maximum distance: 300 feet
- Room Temperature Measurement: Display range: 32° to 99°F (0° to 40°C)
- Return and Leaving Temperature Measurement: Display range: -40° to 160°F (-40° to 71°C)
- Outdoor Temperature Measurement: Display range: -40° to 130°F (-40° to 55°C)
- Setpoint Temperature Range:
- Heat: 40° to 90°F (4° to 32°C)
- Cool: 50° to 99°F (10° to 37°C)
- Setpoint Humidity Range:
- Humidification: 10 to 50 percent RH
- Dehumidification: 40 to 90 percent RH
