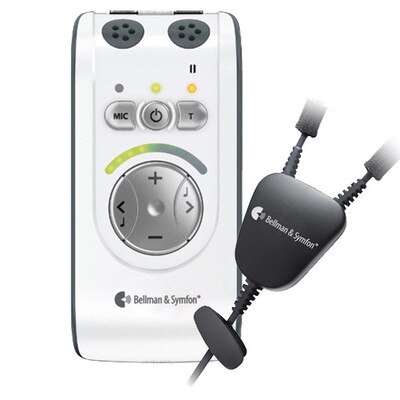

Bellman & Symfon Mino Personal Amplifier with Neckloop
Product Description
Neckloop included.
Swedish Bellman & Symfon Mino Digital Personal Amplifier is an all-digital personal amplifier that helps you hear better in most everyday situations. Mino delivers crystal clear sound, even in busy environments. Whether you wear a hearing aid or just have the occasional hearing difficulty that arises out of everyday life, the Mino helps you understand sounds and words and make listening a more enjoyable activity.
How It Works
The Mino uses digital signal processing which isolates speech while removing background noise and feedback.
Using the Mino is intuitive. Just place it on a table or hang it around your neck. Speech will come through loud and clear. Choose to listen with headphones, earphones, Microse, or if you use hearing aids, via a neckloop (sold separately).
Available for sale only in the U.S.
Tech Specs
Features
- Digital Signal Processing, DSP
- Built in omnidirectional electret microphone and zoom microphone
- 10 channel dynamic range compressor
- 10 channel dynamic noise suppression
- Adaptive feedback manager
- Intuitive user interface
- LED lightbar for excellent readability
- 9 step volume control (5 dB/step)
- 9 step tone control
- Clear indication of Volume, Tone, Mic and T mode
- Low battery warning indicator
- Telecoil pickup for inductive loops
- Push-to-listen mode (Int. mic and Aux in mixed)
- Auxiliary stereo signal input (2.5 mm telejack)
- Headphones stereo output (3.5 mm telejack)
- Auto mute when switching between signal sources
- High gloss finish to minimize handling sound
- Requires no individual fitting
- Built-in rechargeable lithium-ion battery
- Universal charger with included mains plug
- BE9135 Neck strap with safety clasp included
- Polished stainless steel belt clip included
Power Supply
- Battery power: Built-in lithium-ion battery, 3,7V 618 mAh, type McNair MCP413048
- Operating time, fully charged: 18 hours (standard battery)
- Charging time: 2.5 hours (standard battery)
Input Signals
- Microphone: Built-in electric condenser microphones (omnidirectional or directional)
- Line input: 2.5 mm stereo jack plug, sensitivity 0 dBV (maximum input signal) Automatic selection between line input and external microphone
- Telecoil: Angled at 45° for optimal function horizontally and vertically
Output Signals
- Headphone socket: 3.5 mm stereo jack plug
- Output power headphone socket: 100 mW at 16 ohm load
- Distortion: BE9122 Headphones BE9124 In-ear phones, 0.6 percent THD, 0.08 percent THD
- Dynamic range: 90 dB SNR (electrical)
- Frequency range: 40 to 10,000 Hz (electrical)
- Max. output level, saturation:
- BE9122 Headphones: 124.3 dB SPL (at 2.5 kHz)
- BE9124 In-ear phones: 132.0 dB SPL (at 5 kHz)
- BE9125 Stetoclip: 133.7 dB SPL (at 1 kHz)
- Amplification, full volume(1 kHz, 60 dB SPL input signal):
- BE9122 Headphones: 42.5 dB
- BE9124 In-ear phones: 55.0 dB
- BE9125 Stetoclip: 58.2 d
- Amplification, full volume (60 dB SPL input signal, HFA):
- BE9122 Headphones: 46.5 dB
- BE9124 In-ear phones: 51.5 dB
- BE9125 Stetoclip: 52.0 dB
Environmental Requirements
- Operating temperature: 32 to 95° F (0 to 35° C)
- Relative humidity: 5 to 95 percent (non condensing)
Properties
- Volume control: 9 increments of 5 dB
- Tone control: ±10 dB in 9 increments, cut-off frequency 1.6 kHz
- On/Off button: Clear, countersunk pushbutton
- Microphone and T position: Separate pushbuttons
- Combined sound sources: For mixing external sound and sound from the internal microphone
- Balance control (right/left): 0 to 20 dB programmable reduction in increments of 5 dB
- Setting for max. volume: 0 to 21 dB programmable reduction in increments of 3 dB
- Bass Reduction setting: Lowering of frequencies under 400 Hz by 10 dB
- Dynamic compressor:
- 10 channels
- Dynamic amplification 0 to 35 dB
- Compression 3:1
- Expansion 1:1.5
- Attack time 20 ms < 3kHz, 25 ms ≥3kHz
- Recovery time 110 ms < 3kHz, 200 ms ≥ 3kHz
- Dynamic noise reduction: 10 channel adaptive noise reduction
- Feedback handling: Adaptive feedback reduction
- Digital signal processing: 22,050 kHz sampling frequency, 16-bit resolution in stereo
- External dimensions: 99 x 48 x 22 mm
- Weight: 75 grams
- Color: Grey with white front panel and silver-colored buttons.
- Regulatory requirements: CE, RoHS, WEEE, FCC, C-Tick
