Cat6 Cable, Plenum Rated, 1,000'

$320.58
SKU: WRCAT6Px

Please Select Option To View Availability

Shop More From Wire Products

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Description: CAT6 PLENUM- ENHANCED 550 MHz 23 AWG SOLID 4PR UTP, TIA/EIA 568-C.2, CMP – 1000 FT BOX

Product Information:

SCP Cat6 UTP Plenum cables comply with NFPA-262 and are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke. Only plenum rated cables are allowed for USA installation in spaces such as raised flooring systems and air handling ducts.

SCP Cat6 Plenum cables meet TIA/EIA 568-C.2 Category 6 standards. Each cable is 550 MHz 23 AWG insulated solid bare copper conductors with a center spline separating the pairs. This creates a round and flexible cable for easy pulling and stripping of the cable jacket. This cable is ETL and CMP rated and it is packaged on a Reel-In-Box (RIB).

Available in boxes of: 1,000 Ft.

Tech Specs

  • Part Number:

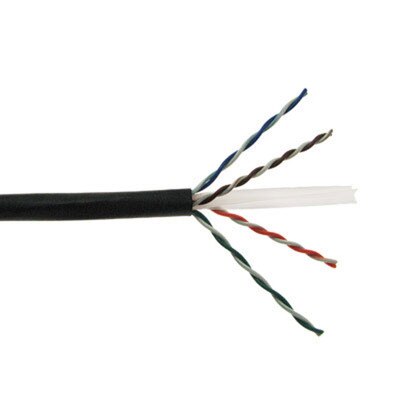

    • Black: CAT6-P-BK

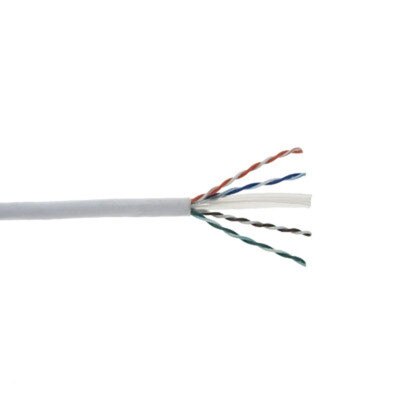

    • White: CAT6-P-WH
  • Sheath Printing: STRUCTURED CABLE PRODUCTS P/N CAT6-P – CAT6 ENHANCED 550 MHz UTP VERIFIED TO ANSI/TIA-568-C.2 E198134 -Z (UL) CMP 4PR 23AWG 75C– – –EU RoHS EC **** FEET MM/YY
  • Category: U/UTP CAT6-4P-CMP PVC
  • Test Standard: ISO/IEC11801, TIA-568-C.2 YD/T1019
  • Conductor:
    • Material: SOLID-Bare Copper
    • Nom. O.D.: 0.565 mm, ±0.005 mm
  • Insulation:
    • Material: FEP
    • Diameter: 1.00 mm ± 0.04 mm
  • Sheath:
    • Thickness: 0.45 ±0.05 mm
    • External O.D.: 5.8 mm ± 0.4 mm
    • Surface: Clean, Frap, Satiation
    • Material: CMP PVC (complies RoHS)
  • Surface Printing:
    • Letter Height: 3.0 mm ±0.3mm
    • Print Error / Space: <= ±0.5 percent, 1m
  • Core Color:
    • Blue: White-Blue
    • Orange: White-Orange
    • Green: White-Green
    • Brown: White-Brown
  • Packing: Box
  • Weight: NW: 13.3kg; GW: 16.6kg
  • Packing Length: 305m ±1.5m
  • Rip-Cord: Yes
  • Drain Wire: No

Sheath Physical Properties

  • Before Aging:
    • Tensile Strength: >=13.5 Mpa
    • Elongation: >=150 percent
  • Aging Period: 100°C x 24hrs x 7d
  • After Aging:
    • Tensile Strength: >=12.5 Mpa
    • Elongation: >=125 percent
  • Cold Bend Test: -20°C 4 hours; No Cracking; 8x Cable O.D.

Electrical Characteristics (20°C)

  • 1.0-250.0MHz, Characteristic Impedance: 100 ohms ±15 ohms
  • 1.0-250.0MHz, Delay Skew:<=45 ns/100m
  • Velocity Of Propagation: 72 percent (NVP)
  • DC Resistance Max: 9.5 ohms/100m
  • DC Conductor Resistance Unbalance Max: 5.0 percent
