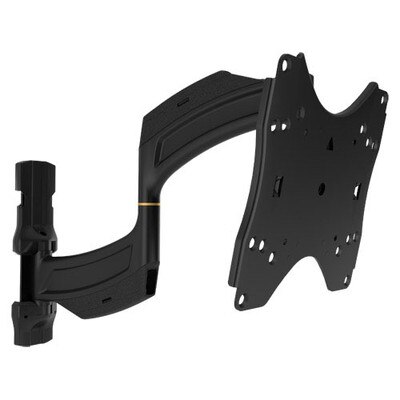

Chief THINSTALL Swing Arm 1-Stud Display Mount, 18" Extension, 26-47"
Product Description
A lightweight, low-profile full-motion wall mount for TVs 26-47".
- Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18" (457 mm) Full extension maximizes viewing potential.
- Centris low-profile tilt Provides up to 12 degrees of effortless fingertip tilt to achieve optimal viewing angles.
- Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Available for sale only in the U.S.
Tech Specs
- Certifications: UL Listed
- Color: Black
- Manual Height Adjustment: 1 inch (25mm)
- Max. Extension: 18 inches (456 mm)
- Max. Screen Thickness: 5 inches (127mm)
- Min. Depth: 1.5 inches (38 mm)
- Mounting Pattern Compatibility (Universal Versions): 100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200 and 400 x 400mm
- Orientation: Landscape, Portrait
- Dimensions: 14(H) x 13(W) x 1.5(D) inches (356 x 330 x 38 mm)
- Pivot (numerical value): ±90° (depending on screen width)
- Post-Installation Leveling (Roll): Yes
- Weight: 13 pounds
- Solution Type: Universal
- Tilt: + 0°, – 12°
- Typical Screen Sizes: 26 – 47 inches
- Wall Stud Compatibility (inches): Single Stud
- Weight Capacity: 75 pounds (34 kg)
