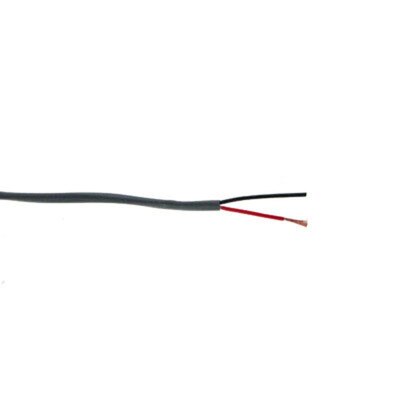

Communication Security Wire, 18AWG, 2C, Unshielded, 500'
Product Description
Description: 2C/18 AWG STRANDED PVC – GRAY – 500 FT BOX
Applications: Security Systems, Intercom Systems, Sound/Audio Systems, Power-Limited Controls. Cables are manufactured to meet current NEC guidelines and are verified by outside standards organizations including c(UL)us and c(ETL)us.
Features: Multi-Conductor unshielded insulated stranded bare copper conductors, twisted with a PVC jacket. Ripcord and sequential foot markings printed on jacket.
ETL, c(ETL), RoHS, CE
Available in boxes of: 500 Ft.
Tech Specs
- Part Number: 18/2-GY-500
- Marking: STRUCTURED CABLE PRODUCTS – – – P/N 18/2 – – – 2 COND 18 AWG STRANDED TYPE CMR/CL2R FT4 75C — (UL) OR C(UL) E198137 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXFT
- Regulatory: UL 444, NEC Article 760, NEC Article 725
- Application: Security Cable
Construction Characteristics
Conductor
- Material: Stranded Bare Copper
- Size: 18AWG X 2C
- Construction: 16/0.24mm ±0.004mm
Insulation
- Material: PVC
- Min. Thickness: 0.27mm
- Avg. Thickness: 0.30mm
- Diameter: 1.70mm ±0.05mm
- Colors: Black and Red
Jacket
- Material: PVC
- Min. Thickness: 0.50mm
- Avg. Thickness: 0.55mm
- Diameter: 4.40mm ±0.10mm
- Rip Cord: Nylon
- Color: Gray
Electrical & Physical Characteristics
- Rating: 75°C 300V
- Conductor Resistance: Max 24.4ohm/km at 20°C
- Dielectric Strength: Min AC1.5KV
- AC Leakage Current Through Overall Jacket: AC 1500V
- Cold Bend Test: -20°C 4 hours; No Cracking
Insulation
- Unaged:
- Tensile Strength: 13.8Mpa
- Elongation: 150 percent
- Aged:
- Tensile Strength: 11.7Mpa (100°C 168h)
- Elongation: 80 percent (100°C 168h)
Jacket
- Unaged:
- Tensile Strength: 13.8Mpa
- Elongation: 150 percent
- Aged:
- Tensile Strength: 11.7Mpa (100°C 168h)
- Elongation: 80 percent (100°C 168h)
