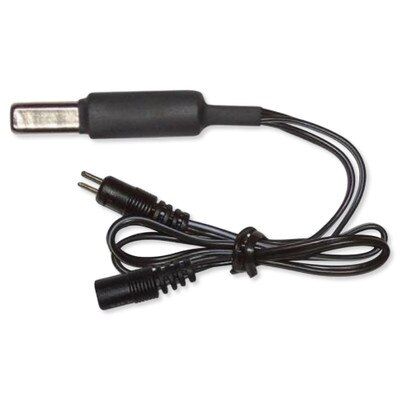

Cool Components Basic Temperature Controller
Product Description
This is a basic but important item when it is desired to add automated control to our cooling and venting products. This unit turns the fans on and off based on temperature and have a set point of 80°F / 27°C or 88°F / 32°C. It is very easy to install as it simply plugs inline between the power supply and fan units. Its small size allows it to be placed most anywhere.
Use the TC-BSC-80 controller for rooms or closets since the ambient temperature is generally lower than cabinets and enclosures.
Use the TC-BSC-88 controller in cabinets or racks due to the fact that cabinets and enclosures can normally be 80°F / 27°C or more. Using the TC-BSC-80 is not appropriate in a small enclosure since this may cause the fans to never turn off.
NOTE: The set points are ±2°.
Available for sale only in the U.S.
Tech Specs
- Dimensions (Sensor): 2(L) x 1/4(D) inches (50 x 7mm)
- Temperature Set Point:
- TC-BSC-80: 80°F (27°C), ±2°
- TC-BSC-88: 88°F (32°C), ±2°
- Compatibility: All Cool Components Products
- Power Specifications:
- Connection: 2-Pin FastWire Power System
- Voltage: 5-12V DC
