DoorBell Fon DP28 Door Answering System, 2-Gang Masonry Box Mount
Product Description
Door Station Controller
The Door Station Controller is the DoorBell Fon interface – the brain of the DoorBell Fon system. This product allows users to answer a door or gate from any telephone in their home or business. It is installed using a single pair of wires for power, control, signaling, and voice: all add-on components are installed with the same single pair. Operation is simple. No programming! No codes! Just answer the phone like a regular telephone call.
- Built-in call waiting
- Simple wiring procedure
- Installs using pre-existing pair of wires and phone lines
- Plugs into any AC wall outlet
- 2 available Door Station terminals
- Each Door Station has a distinctive ring
- Available add-ons for more Features:
- DP29-SW/IM
- DP29-CI
- DP38-T (coming soon)
- Able to daisy chain multiple DP28-C's for more door stations
Door Station

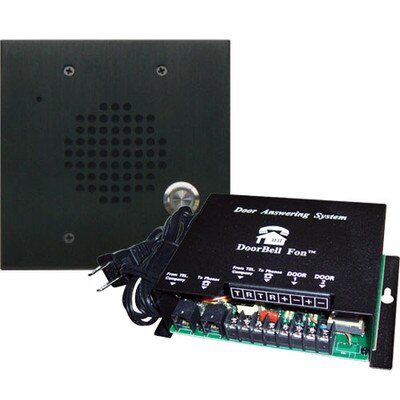

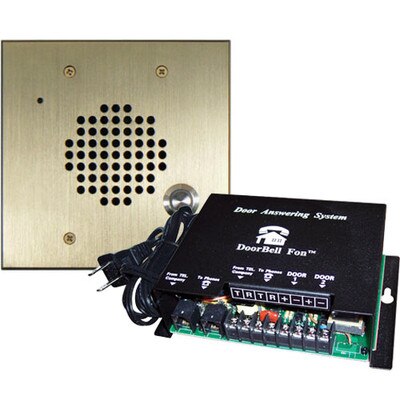

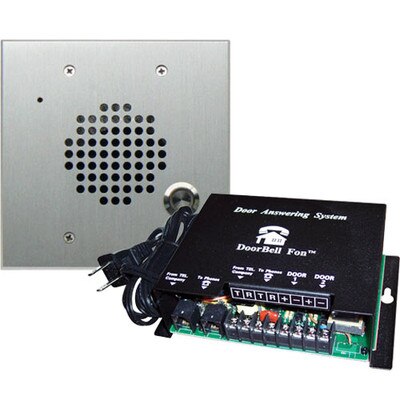

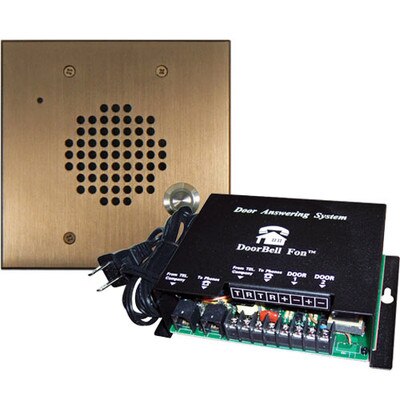

Back by popular demand with additional colors, the DP28F-Series Door Station models include DP28-NBF, DP28-NBKF, DP28-NBZF, and DP28-NSF. These units provide standard door-to-phone communication when used with the DP28-C*. All F-Series Door Stations mount into any standard double-gang masonry box as a flush mount. An optional back box (DP38-BXFS) is available as a surface mount. This weather-proof back box provides quality protection and durability for your unit. Colors are available in 4 anodized finishes: brass, black, bronze, and aluminum. These Door Stations are also available in kits with the DP28-C as the DP28-BF, DP28-BKF, DP28-BZF, and DP28-SF.
*DP28-C not Included
- Manufactured in aluminum with anodized Brass, Black, Bronze, and Aluminum finishes
- Mounts into any standard double-gang masonry box as a flush mount
- Optional surface mount back box (DP38-BXFS) mounts easily on almost any surfaces including fences and gates
- All back boxes are manufactured in steel with black powder-coating finish and provides superior protection from the elements
- No external power required: power drawn from connected Door Station Controller (DP28-C) >
- LED button lights up when the Door Station is active
Applications
- Communicate with people at a door, gate, or any other entrance way where Door Station is present
- Can be placed at:
- Front/Rear Entrances
- Remote Entryways
- Marine Docks
- Delivery Docks
- Secured Facilities
- Senior Housing
- Disabled Housing
- Apartment Complex
- Use in conjunction with the DP29-CI to activate external trigger devices (e.g. door chimes, cameras, lights...) with the Door Station
- Use in conjunction with the DP29-SW to open electronically locked doors or gates with the phone
- Use as extra Door Station to any Door Station Kit
Tech Specs
Main Controller
- Power Requirements: 117VAC/60Hz, 0.1A, 12 Watts
- Fuse 1: 250 VA, 0.5A
- Fuse 2: 250 VA, 0.25A
- Output: 17-28VDC (Voice), 750Vrms/25 ±2Hz (Ringing)
- Operating Temperature: -20 to 120° F
- Dimensions: 5.8125 x 3.875 x 1.75 inches
- Weight: 2.1 pounds
DP28 Door Station (2-Gang Masonry Box Mount)
- Dimensions: 4.5 x 4.5 x 1.625 inches
- Size: 2-gang
- Shipping Weight: 2 pounds
- Speaker
- Frequency Response: 400~2.8kHz
- Impedance: 8 ohms
- Peak Power: 0.25W
- Diameter: 2.25 inches
- Microphone Frequency Response: 200~6.8kHz
