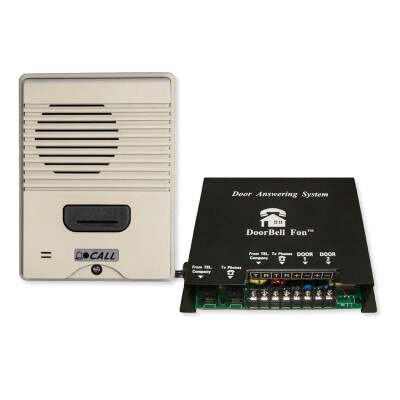

DoorBell Fon Door Answering System

$198.65
SKU: ACDP28IT

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Today's Generation Door Bell

The 21st Century door-answering device is here. Bring Convenience, Security & Assistance to your home today with the DOORBELL FON. This amazing product allows users to answer a door or gate from any telephone in their home of business. It installs using a single pair of wire for (power, control, signaling & voice). Add on components install on same single pair of wire. Operation is simple. No Programming! No Codes! Just pick up the telephone like a regular phone call.

Operation

Simple, when a visitor presses the button on the door box, the telephones will ring with a distinctive ring to let you know someone is at the door. Just simply pick up the telephone and you are automatically connected to that door. If you are on the telephone and a visitor comes to your door you will hear a distinctive call-waiting tone. Press the "flash" key or hook switch your telephone and the built in call-waiting on your DOORBELL FON will switch you to the door and place your outside call on hold. When you are finished talking to the door just press the "flash" key or hook switch and connect back to the outside call.

Tech Specs

Main Controller

  • Power Requirements: 117VAC/60Hz, 0.1A, 12 Watts
  • Fuse 1: 250 VA, 0.5A
  • Fuse 2: 250 VA, 0.25A
  • Output: 17-28VDC (Voice), 750Vrms/25 ±2Hz (Ringing)
  • Operating Temperature: -20 to 120° F
  • Dimensions: 5.8125 x 3.875 x 1.75 inches
  • Weight: 2.1 pounds

Door Station (Surface-Mount)

  • Power: Circuit Board (no external power required)
  • Dimensions: 3.75(W) x 5(H) x 1(D) inches
