ELK M1 Gold Controller Kit for Structured Wiring Panel & M1KP Keypad

$881.66
SKU: ELKM1GK

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

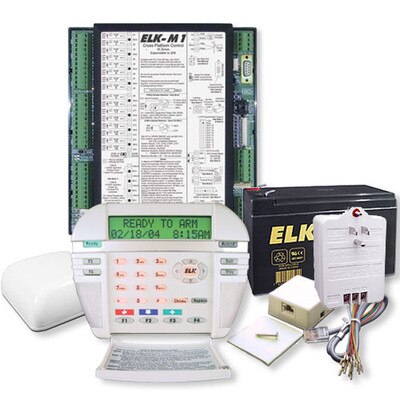

This "Ready to Install" value package includes the following components:

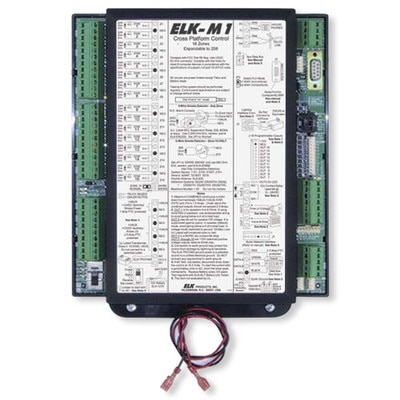

M1 Gold Control Board: M1 Gold is commonly referred to as a Cross Platform control due to the fact that it can be networked with other industry standard systems. A 500+ word vocabulary pleasantly announces system status, configurable in any sequence, to alleviate user intimidation. The built-in voice dialer can call up to 8 phone numbers and alert owners of status changes; such as, critical temperature levels, water leaks, children arriving home from school, etc. Built-in telephone remote control allows you to control temperature settings, water heater, garage door, lighting, and sprinklers plus arming/disarming system and more; by simply picking up the phone – any phone.

Optional Ethernet port allows for programming,monitoring, and control over LAN or Internet without the need for a dedicated "24/7" server. Integrators and Installers will value the flash memory firmware, RS-232 serial port, Ethernet connectivity option, and PC programming in English text.The LCD keypads have programmable task keys, a navigation key to access system status and automation tasks, plus large character display.

M1KP LCD Keypad: The ELK-M1KP is an addressable LCD Keypad for the M1 Cross Platform Controls. It features a 32 character back lighted display with adjustable intensity and extra large character fonts for ease of readability. The M1KP includes a plug-in connector on the back for adding an internal proximity reader (ELK-M1PR) or for interfacing to virtually any external 26 bit Wiegand compatible proximity reader. Proximity cards/fobs can be used for touchless arming, disarming, door strike control, etc.

1280 8Ah Battery: Elk Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.

73 Echo Paintable Interior Speaker: The ELK-73 is a 20 Watt, 8 Ohm Speaker mounted in an attractive surface mount plastic enclosure. This versatile Echo Series speaker is designed to be heard but not seen!. Sound "echoes" off mounting surface from back plate edge.

This unique contemporary speaker has a smooth, paintable, "no grill" surface that easily blends with any decor. This speaker mounts to any flat surface or single gang electrical "J" box.

952 In-line Telephone Surge Protector: The ELK-952 provides exceptional protection against damage from lightning, voltage spikes, and surge damage coming into a phone line. It installs between the RJ31X Phone Jack and the Security Control. The ELK-952 features multi-stage protection and is 5 times faster than MOVs.

RJSET Telco Jack & Cord: The ELK-RJSET is for use with Alarm System Communicators, Line Fault devices, or other equipment as a means of connecting to the incoming telephone line. Includes USOC RJ31X 8 pin modular surface mount jack and 2 ft. 8 wire modular cord with plug on one end and spade terminals on the other.

TRG1640 AC Transformer: Features: Auto-Resetting (PTC) Fused Secondary, Green Power On LED, Grounding Prong & Terminal, Electrical outlet mounting tab, UL Listed, Wire Strain Relief.

Product Docs
