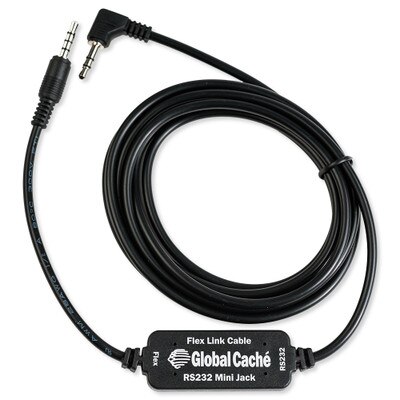

Global Caché Flex Link RS232 Mini Jack Cable
Product Description
This product is designed to be used with the Global Caché Flex products to transmit and receive serial data.
The Flex Link RS232 Mini Jack cable utilizes a 3.5 mm mini jack, allowing for direct connections to 3.5 mm mini jack RS232 ports and serial inputs on many common TVs and other AV devices.
- Connects directly to 3.5 mm mini jack service and serial inputs and allows simple software crossover configuration.
- Full support for Tx, and Rx signals.
- Bi-directional communication with no hardware handshaking.
- Configurable using iTach Flex integrated web server or HTTP and TCP software APIs.
- Supports standard 8 data bit serial.
- Gender: Allows for null modem and straight through cable creation.
- Male 3.5 mm mini jack stereo connector.
- 6.5 ft (2 meters) cable.
- No power supply required.
- Made in the USA.
NOTE: Required iTach Flex not included.
Available for sale only in the U.S.
Tech Specs
- Part Number: FLC-SL-MJ
- Interface: Serial RS232
- Connector: Male 3.5 mm mini jack at 45-degree angle for connection to mini jack serial ports.
- Throughput: Straight through or crossover configurable from setup web page.
- Speed: 300 baud to 115.2 Kbaud.
- Cable/Connector: 6.5 feet (2 meters) cable with 3.5 mm plug connects to Flex Link Port.
- Dimensions: 2.48 x 0.79 x 0.28 inches
- Approvals: RoHS
- Warranty: 2-Year Limited
