Global Caché iTach, Wi-Fi to Contact Closure

$120.56
SKU: GCWF2CC

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Wirelessly connect and control relay activated devices over a network and the Internet. The iTach WiFi devices provide a new level of automation and control flexibility, enabling device networking without wiring. The product is based on open systems and standards for easy integration and compatibility with PC based control software, iPhone/iPod/iPad control apps, and high-end control systems.

The innovative design of the Global Caché iTach allows for easy and flexible integration into any networked control solution. The iTach is a simple wired or wireless conduit between you and your device over a network or the Internet. This is instant network-enabling at its best, delivering the power of choice at a cost-effective price.

Features:

  • Connects almost any electrical device to a network instantly
  • Access, monitor, and control standalone equipment
  • Wired, wireless, and PoE models available
  • Supports eight simultaneous connections
  • Ultra compact design, stylish enclosure can fit almost anywhere
  • On board web server for easy setup, HTTP, DHCP
  • Flash upgradeable for firmware enhancements in the field
  • Made in the USA and RoHS compliant

In The Box:

  • iTach WiFi to Contact Closure (Relay)
  • Power Adapter
  • USB Cable
  • Quickstart Guide

Available for sale only in the U.S.

Tech Specs

  • Part Number: WF2CC
  • Power Input: 5 to 16V DC@300mA (wall power adapter included); USB power cable draws power from USB port (included)
  • Setup: Integrated web server for easy configuration; Configure through TCP/IP set up commands
  • iHelp Setup Utility: Downloadable iHelp software simplifies network discovery and setup
  • IR Learning Utility: Downloadable iLearn software allows for the capture and playback of IR commands for control uses
  • Network Connection: Industry standard 802.11b wireless interface, 2.5-inch antenna; Supports wireless LAN, adhoc (for setup) and Infrastructure modes; Compatible with 802.11b
  • LED Indicators: Power and Contact Closure (Relay) Connectivity Indicators

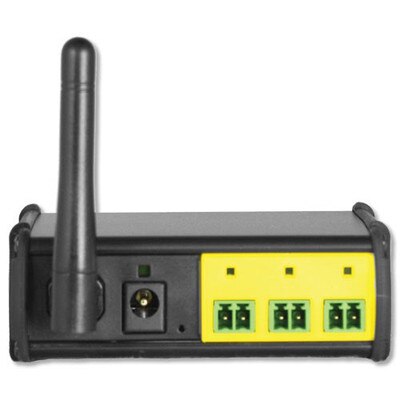

  • Contact Closure/Relay: 3 integrated contact closure relays w/ transient voltage suppression; Pluggable screw terminal 24V AC/DC@.5A N.O. contact; Allows for switching of low voltage wiring
  • Device Packaging: Aluminum extrusion case, rubber end caps and plastic face plates
  • Weight: 3.25 ounces (6 oz. with power supply)
  • Dimensions: 3.25(L) x 2.25(W) x 1.25(H) inches
  • Shipping Box Dimensions: 9.0(L) x 3.5(W) x 2.0(H) inches
  • Certifications: FCC (Part 15, Class B), C-tick, CE; RoHs compliant
  • Warranty: 2-Year Limited
