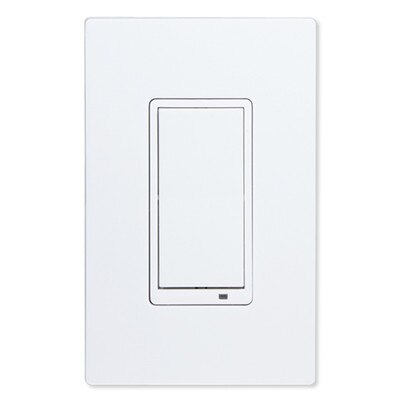

GoControl Z-Wave 3-Way Wall Accessory Switch
Product Description
The WT00Z5-1 Wall Mount Accessory Dimmer Switch allows remote ON/OFF control and dimming of lights controlled by associated Z-Wave modules, creating virtual 3-way switches. The WT00Z5-1 controls no load directly, so it can be wired anywhere power is available, without the need for a traveler wire.
When installing a Z-Wave 3-Way Light setup utilizing Nortek Security & Control products, you will need a Load Bearing switch (WS15Z-1, WD500Z-1 or WD1000Z-1) and a non-load bearing WT00Z-1. Multiple WT00Z-1 switches can be utilized to control multiple Load Bearing devices.
Replaceable Trim Ring
The WT00Z5-1 3-Way Wall Mount Accessory Dimmer/Switch has a field replaceable trim ring – the color of the device can be altered with the Trim Ring Kit model in black, brown and almond.
In The Box:
- 3-Way Wall Accessory Switch
Tech Specs
- Part Number: WT00Z5-1
- Signal (Frequency): 908.42 MHz
- Load: Does not directly control a load. Another Z-Wave device is required.
- Range: Up to 100 feet between the wireless controller and/or the closest Z-Wave device
- Input: 120v 15A 60Hz
- Z-Wave Version: 4.55
- Network Inclusion: Yes
- Scene: Command Class
- Security Compatible: Yes
