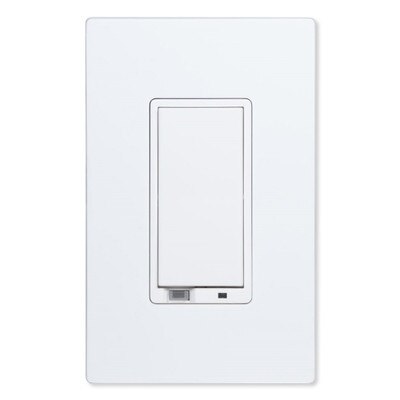

GoControl Z-Wave Dimmer Wall Switch, 500W

$53.00
SKU: LNWD500Z51

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The WD500Z5-1 Wall Mounted Dimmer allows remote ON/OFF control and dimming of connected lights. The Z-Wave Wall Mount Dimmer is easily wired in place of a standard wall dimmer. The Wall Mounted Dimmer integrates with other Nortek Security & Control Z-Wave enabled products, and can also act as a wireless repeater to ensure that commands intended for another device in the network are received (useful when a device would otherwise be out of radio range).

When installing a Z-Wave 3-Way Light setup utilizing Nortek Security & Control products, you will need a Load Bearing switch (WS15Z-1, WD500Z-1 or WD1000Z-1) and a non-load bearing WT00Z-1. Multiple WT00Z-1 switches can be utilized to control multiple Load Bearing devices.

Replaceable Trim Ring

The WD500Z5-1 Wall Mount Switch has a field replaceable trim ring – the color of the device can be altered with the Trim Ring Kit model in black, brown, almond and ivory.

Auto-Sense:

Unique to Nortek Security & Control, the Auto-Sense feature allows for local lamp activation independent of the Z-Wave controller status.

In The Box:

  • Dimmer Wall Switch, 500W

NOTE: This device requires a Neutral connection.

Tech Specs

  • Part Number: WD500Z5-1
  • Maximum Load: 500 Watts for control of permanently installed lighting fixtures only (Not for control of receptacles)
  • Signal (Frequency): 908.42 MHz
  • Range: Up to 100 feet between the wireless controller and/or the closest Z-Wave device
  • Input: 120V 15A 60Hz
  • Z-Wave Version: 4.55
  • Network Inclusion: Yes
  • Scene: Command Class
  • Security Compatible: Yes
