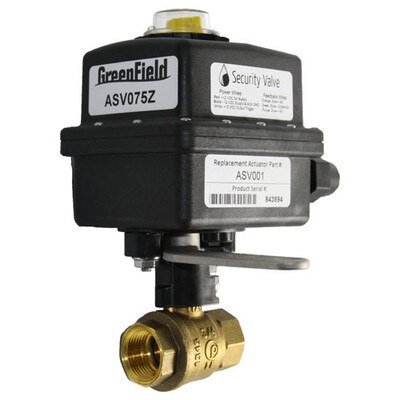

Greenfield Automatic Security Valve Kit, 3/4" Brass Ball Valve

$473.86
SKU: GFASV075ZB

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

By connecting our Automatic Security Valve to your home automation system, the water or gas supply to your home or business can be controlled remotely giving you total control of your water or gas supply home or away. Our product also works great in conjunction with systems that already have water or gas sensors, but lacks the ability to actively turn off the water or gas supply. When combined with an automation system's existing sensors, our product can react fast before significant damage can occur.

Benefits of Use:

  • Fast opening and closing provides control of incoming water or gas supply
  • Integrates with existing control systems and sensors
  • Provide 24 hours a day access to your water or gas supply
  • Compatible with major brands of security systems
  • Significantly reduce water damage or gas leaks
  • Protect your home and business
  • Possible insurance discounts
  • Added property protection
  • Provides peace of mind
  • Conserves water or gas

Actuator Features:

  • Actuator provides feedback when the valve is open or closed
  • Will not create explosions due to sparks from the motor
  • Extremely rugged high-torque electric actuator
  • Waterproof and weatherproof
  • Can be installed outside

Valve Features:

  • Brass valve body with 2-piece construction
  • Equipped with a manual handle for emergency override
  • Approved for use with water, oil, and gas applications
  • Pressure rated to 600 PSI at 70° F
  • Approved for drinking water applications in all 50 states
  • Full port valves for maximum flow
  • Threads are FNPT

PS100 is the recommended power supply for ALL Security Valves. This is included in ALL Security Valves.

Compatible Manufacturers:

  • Leviton (HAI)
  • Digital Security Controls (DSC)
  • Honeywell
  • Interlogix (GE)
  • Visonic
  • George Risk Industries (GRI)
  • Elk Products, Inc.
  • Winland Electronics
  • Resolution Products
  • Secure Wireless
  • Tane Alarm Products
  • Flair Electronics
  • FortrezZ – MIMOlite
  • Fibaro

Tech Specs

  • Part Number: ASV075Z
  • Warranty: 1 Year

ACTUATOR

  • Housing Ratings: NEMA 6P (waterproof); NEMA 7D (ignition proof)
  • Certifications: UL listed
  • Input: 100-240V ~50/60Hz 1.0A MAX
  • Output: 18V 2.22A
  • Power Requirements: 12/24VDC or 24VAC
  • Recommended Power Supply: PS100

VALVE CERTIFICATIONS

  • UL Listed
    • VQGU – Trim and drain (US only)
    • MHKZ – Manual valves
    • YQNZ – Compressed gas shut-off valves
    • YRBX – Flammable liquid shut-off valves
    • YRPV – Gas shut-off valves
    • YSDT – LP gas shut-off valves
    • SFJQ – Valves, refrigerant
  • NSF 372
  • NSF 61-8
  • NSF 61 – Annex G
  • CSA Certified
    • ANSI Z21.15 (.5 PSIG)
    • ASME B16.44 (5 PSIG)
    • CGA CR91 (5 PSIG)
  • FM Approval
  • MSS SP-110
