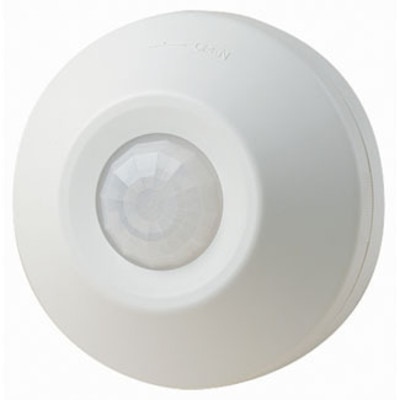

Leviton 120VAC Ceiling Motion Detector

$109.63
SKU: LVODC0SI1W

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Leviton's Self-Contained Passive Infrared Ceiling Occupancy Sensor is the cost-effective choice for commercial and institutional installations, where installation of the recessed ceiling unit is difficult, inconvenient or costly. The LLVODC0SI1W is ideal for storage areas, small bathrooms, copy rooms, mop/sink closets or small spaces without wall switches. The Self-Contained Ceiling Sensor does not require an external control unit for power or switching the load ON and OFF.

  • Sensor and switching relay in one unit – eliminates need for additional control unit for power or switching
  • 360° field of view with approximately 530 sq. ft. of coverage when mounted at 8 ft. This reduces the number of additional sensors typically required in many spaces. See Table 1 for additional mounting heights and coverage
  • Adjustable Delayed OFF time setting between 20 seconds and 15 minutes allows custom adjustment for maximum savings.
  • An ambient light override option can be set between .5 and 500+ foot candles and full brightness to prevent the sensor from switching lights ON when ample natural sunlight is available.
  • Segmented Fresnel lens contains 79 segments for optimum sensitivity and detection performance .
  • A standard A/C toggle switch may be used to provide manual ON/OFF override so that lights may be switched OFF during presentations
  • LED indicator light flashes when sensor detects motion, to verify power placement and function of sensor at installation
  • UL Listed and CSA Certified, complies with California Title 24 Energy Code and FCC Regulations

Tech Specs

  • Sensor Type: PIR
  • Adjustment: Manual
  • Sensor Technology: Passive Infrared
  • Pattern Degrees: 360
  • Coverage Range Sq. Ft.: 530
  • Manual Time Adjustment: 20s-15m
  • Load Rating: 1000W INC 1000VA FL
  • Input Voltage: 120 Volt AC 60Hz
  • Photo Cell: Ambient Override ON
  • Feature: Self-Contained
  • Color: White
  • Standards and Certifications: UL/CSA
  • Code Compliance: California Title 24
