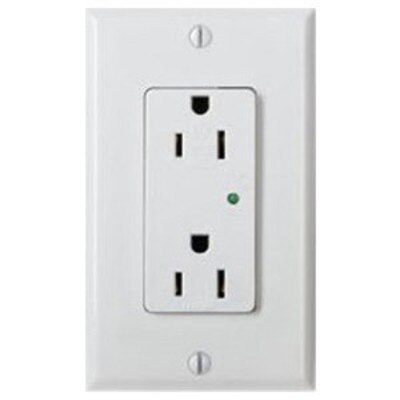

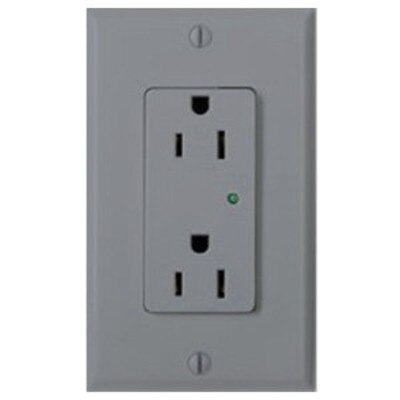

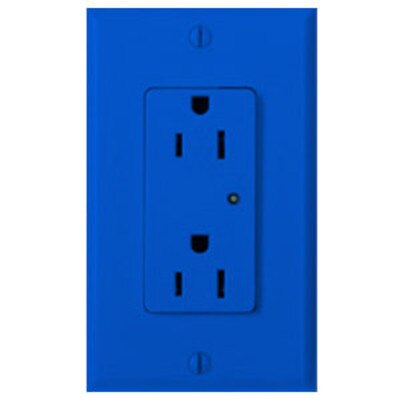

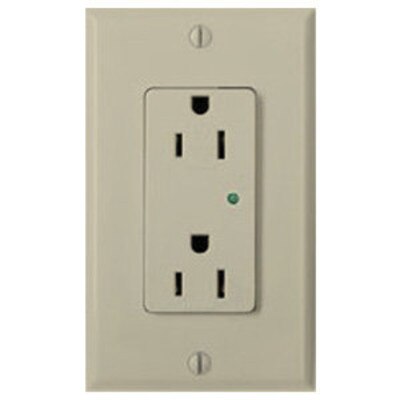

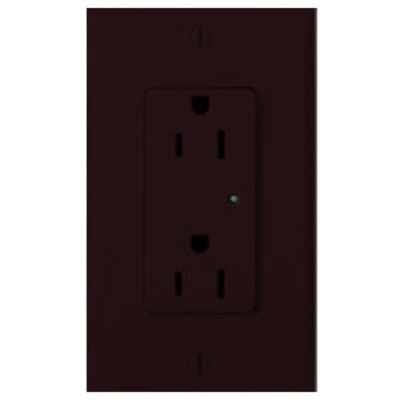

Leviton Surge Protective Duplex Receptacle, 20A

$52.53
SKU: LV5380x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Catalog Numbers Series 5380 duplex receptacles provide hard-wired, point-of-use surge protection for electronic equipment used on 15 Amp and 20 Amp 125 Volt branch circuits. Catalog Number Series 5380 duplex receptacles are designed for use where transient voltage surge suppressors are specified and hard-wired devices are preferred. The receptacles come with matching-color wallplates and are suitable for a wide range of industrial, commercial and residential Applications. MOV-based circuitry provides surge protection for normal and common modes (phase-neutral, phase-ground and neutral-ground). The 5380 series are provided with a LED indicator which monitors surge suppression status. The receptacles have been tested to ANSI/IEEE C62.41 standards for Category A and B environments and are UL 1449 (2nd Edition) Listed.

Tech Specs

  • Grounding: Self Grounding
  • Feature: Surge
  • Amperage: 20 Amp
  • Voltage: 125 Volt
  • NEMA: 5-20R
  • Pole: 2
  • Wire: 3
  • Termination: Back & Side
  • Face Material: Thermoplastic Nylon
  • Body Material: Thermoplastic Nylon
  • Strap Material: Steel
  • Color: Ivory, White, Blue, Brown, Gray
  • Standards and Certifications: UL/CSA
  • Joules Rating: 720
  • UL1449 Impulse 6kV/500A L-N: 400V
  • Max Surge Current L-N: 24kA
  • Noise Rejection: -30dB at 500kHz-30MHz
  • Diagnostics: Indicator Light
