| Leviton QuickPort Cat5e 8-Conductor Snap-In Connector
|
|
|
|
|
Product Details

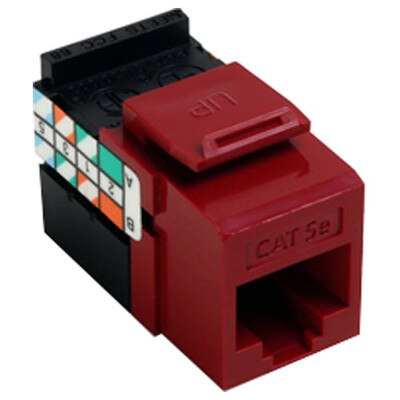

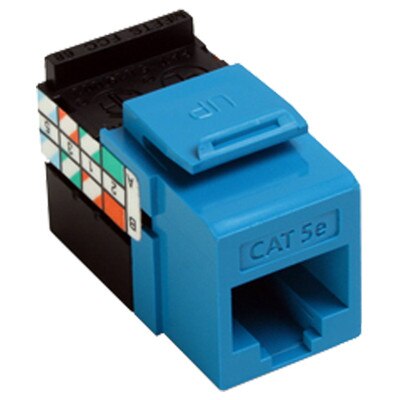

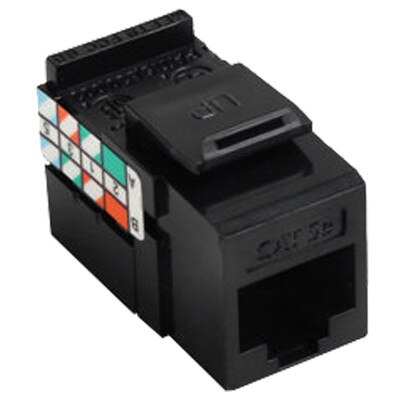

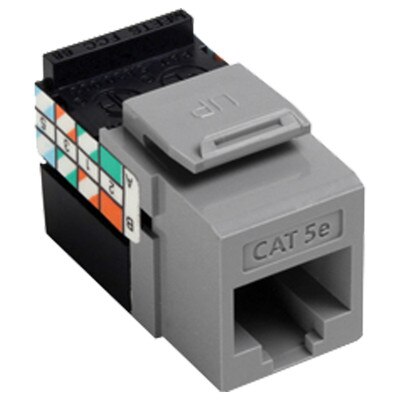

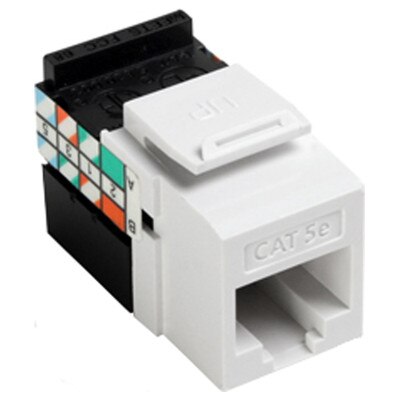

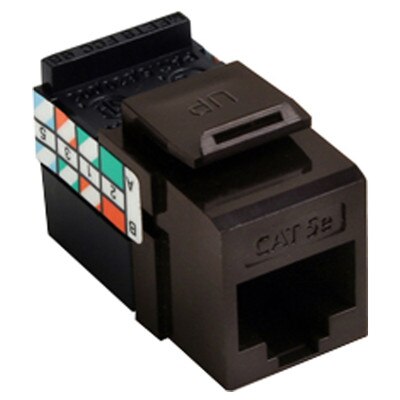

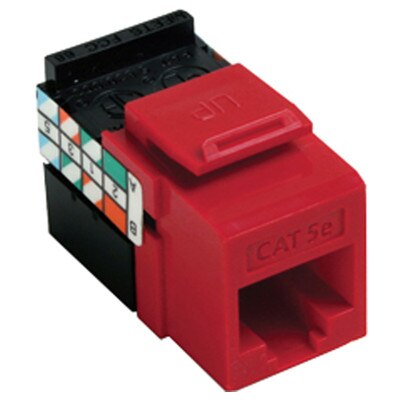

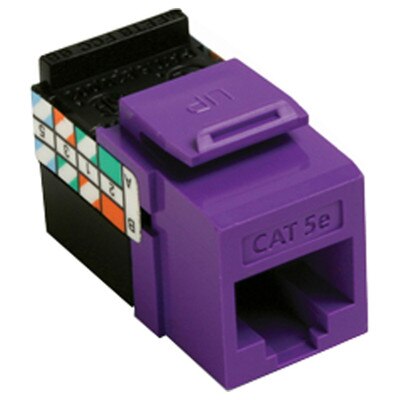

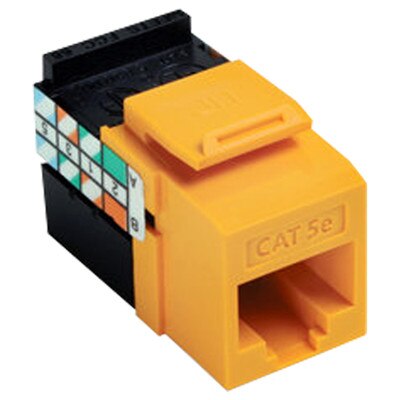

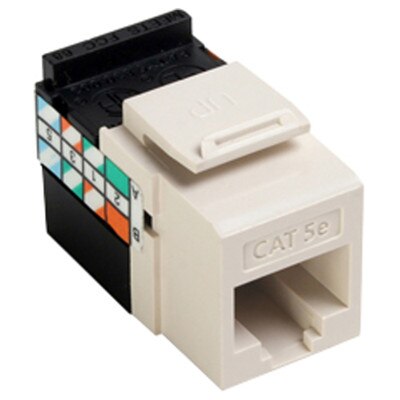

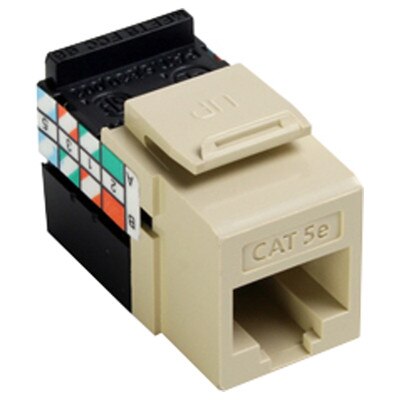

Leviton QuickPort Cat5e 8-Conductor Connector
Features and Benefits
- Leviton's GigaMax 5e Connector is designed to be used with any QuickPort housing in surface mount, flush mount or modular furniture outlets and field configurable panels.
- The connectors include Leviton's patented "Retention Force Technology" which promotes consistent performance over the life of the system.
- Includes unique pair seperation towers allowing for quicker and easier terminations.
- The connector is configured in a 180 degree configuration such that the punch field is in the back, allowing for rear termination.
- GigaMax 5e system components meet or exceed the requirements for channel-level performance for TIA/EIA Catagory 5e applications.
Product Features
- Module Style: Connector
- Module Type: Category 5e
- Position / Conductor: 8P8C
- Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
- Connector Feature: Channel-Rated
- Termination Type: 110 Punchdown
- Contact Surface Material: 50 microinches thick Gold-Plated
- Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
- Contact Base Material: Phosphor Bronze
- Body Color: Almond, Blue, Gray, Green, Red, White
- Standards and Certifications: TIA/EIA cULus Listed
