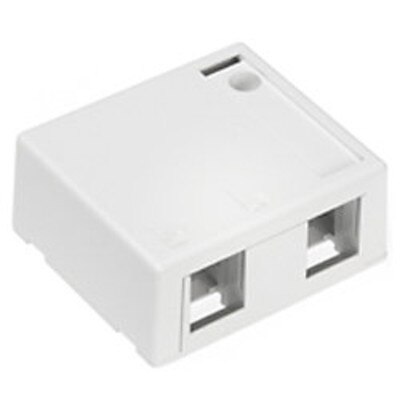

Compact housing for 1- or 2-port surface mounting of QuickPort® snap-in modules. Use to support voice/data applications in open office, retrofit or other surface mount environments. (Connectors sold separately.)

Unique Features

• Very small footprint/profile.
• The housing base functions as a punchdown platform for stabilizing connectors during termination.
• Includes a blank to allow for use as a 1- or 2-port device, and allow for future expansion when only one port is initially used.
• Security screw option.

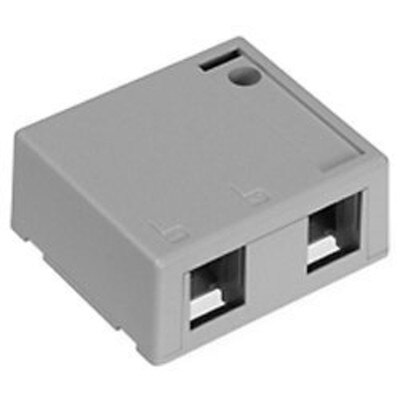

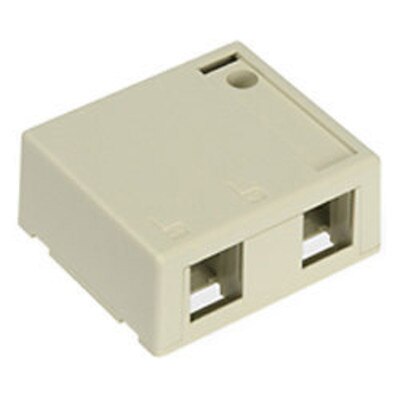

• Four color choices: Ivory, White, Gray and Black.

Installation Notes

• To install connectors: snap into base and terminate. Attach base to desired surface (using screws or tape), and snap on cover.
• The housing base doubles as a punchdown platform for terminating connectors.
• If desired, connectors can be pre-terminated prior to snapping into housing.
• Detailed installation instructions are included
