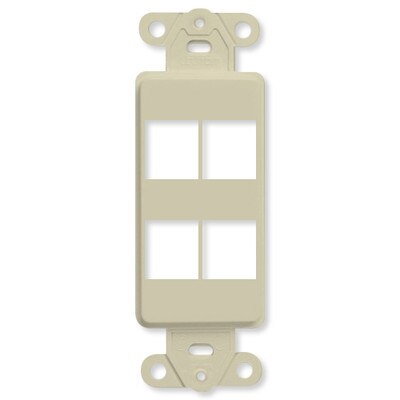

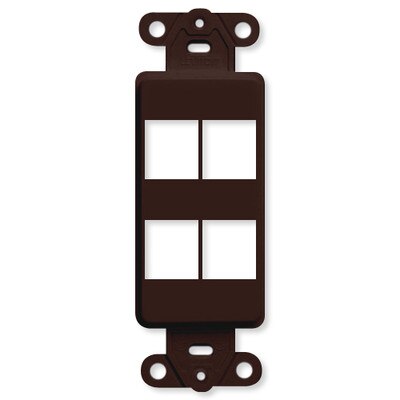

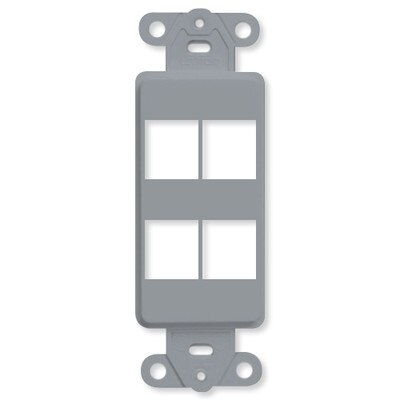

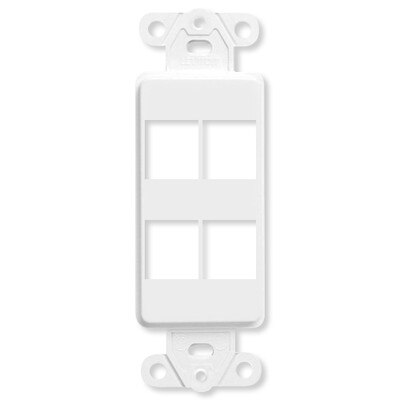

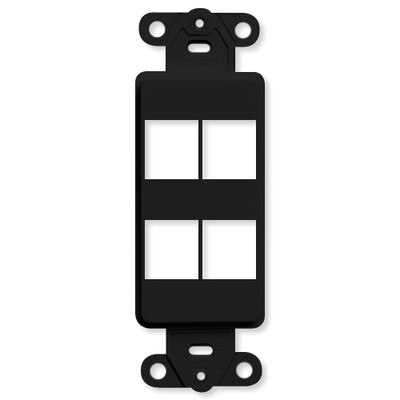

APPLICATION: Field-configurable Decora® style housing that accepts all QuickPort® snap-in modules. Use to support voice, data, audio and video applications in NEMA openings where a Decora look is desired.

STANDARDS COMPLIANCE: Meets or exceeds all applicable standards: UL Listed; CSA Certified; complies with NEC® Article 800; TIA/EIA-568-B; meets FCC Part 68.

PHYSICAL SPECIFICATIONS:

• Dimensions: 4.145"H x 1.405"W x .45"D
• Capacity: 4 snap-in modules
• Materials: High-impact, fire-retardant plastic rated UL 94V-0

DESIGN CONSIDERATIONS:

• Use where a Decora look and flush-mounting are important.
• Fits locations where a Decora-style opening exists.
• If ganged with electrical devices, use the 47610 series of mounting brackets or a barrier box.
• Put blanks (41084-BXB) in unused ports to allow for future expansion.
• To ID ports, use different colored jacks for each application.
