Compact surface mount housing for up to 4 individual snap-in QuickPort® modules for UTP, coax or ST fiber (sold separately). Use to support voice/data applications in open office, retrofit and other surface mount environments. Meets or exceeds all applicable standards: UL Listed; complies with TIA/EIA-568-B and NEC® Article 800.

Features

• Compatible with all QuickPort snap-in modules and connectors.
• Knockouts in cover are compatible with major raceway brands.
• Connectors can be terminated while installed in the housing.

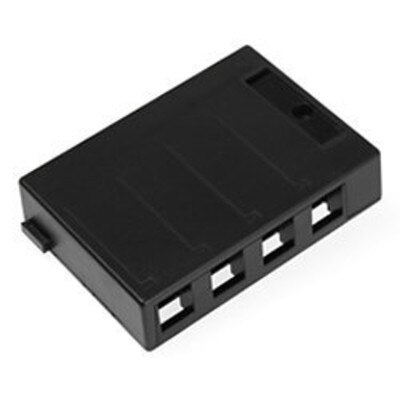

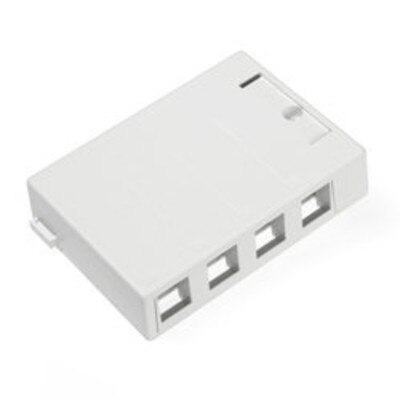

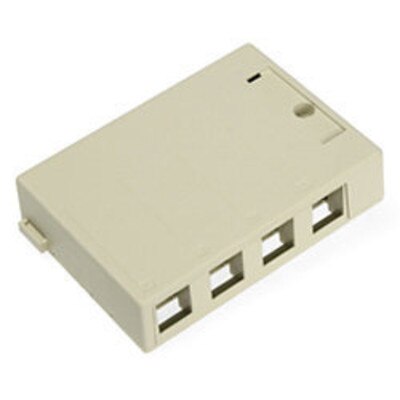

• Available In Black, Gray, Ivory, and White.

Specifications

• Dimensions: 4.77"H x 3.21"W x 1.05"D
• Materials: Fire-retardant ABS plastic rated UL 94V-0
• Capacity: 1-4 individual QuickPort snap-in modules
• Mounting: Use screws, adhesive tape, or magnets. Two self-tapping screws and two pieces of 1" double-back adhesive tape are provided.
