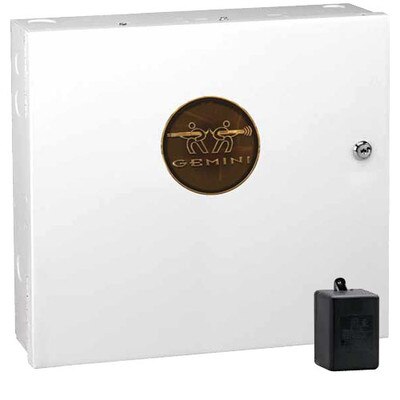

Napco Gemini P3200 Hybrid Security Panel, 8-32/48 Zones

$177.27
SKU: NPGEMP3200

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Popular, all-around 8 zone hybrid control, expandable to 32 zones or 48 wireless points.

Features:

  • 8 to 32 hardwire or wireless zones/points; up to 48 RF wireless points
  • Including 2 2-wire fire zones
  • Up to 48 user codes
  • Up to 2 areas
  • Fuseless, maintenance-free operation
  • 3 on-board relay outputs; expandable to 24
  • 1 on-board programmable lug
  • Up to 2 RF receivers
  • Up to 7 keypads
  • Interior bypass groups
  • Up to 24 X-10 devices supported
  • 800 vent log
  • Auto arm/disarm

All Gemini hybrid controls feature:

  • Multiplex expandability using built-in EZMs in custom alpha keypads or 8-zone expansion modules (except GEM-P800)
  • Up/Downloading, including unique PC-preset unattended method
  • EZ-Programming mode at keypad
  • Choice of Gemini RF receivers and transmitters
  • Multi-stage lightning protection
  • Event log with open/close suppression
  • NetLink intranet/internet alarm reporting option
  • X-10 Support with optional GEM-X10 interface
  • Telco line cut supervision
  • Support for VOIP (voice over internet protocol) communications
  • Support all major communication formats and secondary pager format
  • SIA CP01 compliant versions available
  • Include transformer

Tech Specs

  • Panel Dimensions: 12.375(L) x 13.875(W) x 3.55(H) inches (without cover)
  • Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
  • Input Power: 16.5VAC via CLASS 2 Plug-In 40VA or 50VA Transformer
  • Loop Voltage: 10-13VDC
  • Loop Current: 2.4mA with 2.2K Ohm end-of-line resistor (Model EOL2.2K); 5mA for 2-wire smoke-detector zones; 1.4 mA using a 3.9K Ohm resistor (Model EOL 3.9K) with Zone Doubling
  • Loop Resistance: 300W max.; 50W for 2-wire smoke-detector zones
  • Relay Outputs (Burglary; Reset; Aux): Wet, 12Vdc, 1.2A max.; Dry (cut related jumper for dry contacts; see Wiring Diagram), SPDT contacts 24Vdc, 2A, 0.6 PF
  • Auxiliary Power Output: 12VDC regulated
  • Remote Power Output: 12VDC regulated (for keypads)
