Napco Gemini P801 Security Panel, 9 Zones

$118.23
SKU: NPGEMP801

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Napco's economical 9-Zone Hybrid Gemini P801 Series, sporting your choice of numeric or custom alpha keypads has many innovative features, including programmable EZ-Arm with new One-Touch Stay and Away easy operation. The affordable P801 panel boasts 9 programmable zones, including 2-wire fire, with no zone doubling. Programmable zones on the GEMP801 panel include: 6 hardwire or wireless zones, 2 wireless zones and 1, 2-wire fire zone.

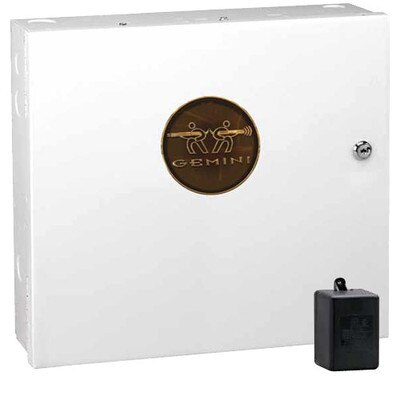

The panel package, model # GEMP801, includes the hybrid control and a plug-in transformer. The Gemini P801 Series features 8 user codes and 50 event log. Plus, it supports all the same standard Gemini Transmitters used with other Gemini panels. Wireless transmitter signal strength is also audibly and visually reported right at a keypad. Programming for the panel is easy with the Napco PCD-WINDOWS software.

  • 9 programmable zones, including 2-wire (No zone doubling)
  • 6 Hardwire or wireless zones plus: 2 wireless zones plus 1 2-wire fire zone
  • Use 2 optional zones at GEMRP8LCD Custom Alpha Keypad
  • Uses GEMRECVXP8 wireless receiver
  • 8 individually reporting user codes
  • 50 event log
  • PC programmable with PCD-Windows
  • Line and bell-cut supervision
  • Double reporting and backup reporting
  • EZ wire full-size terminal strips

All Gemini hybrid controls feature:

  • Multiplex expandability using built-in EZMs in custom alpha keypads or 8-zone expansion modules (except GEM-P800)
  • Up/Downloading, including unique PC-preset unattended method
  • EZ-Programming mode at keypad
  • Choice of Gemini RF receivers and transmitters
  • Multi-stage lightning protection
  • Event log with open/close suppression
  • NetLink intranet/internet alarm reporting option
  • X-10 Support with optional GEM-X10 interface
  • Telco line cut supervision
  • Support for VOIP (voice over internet protocol) communications
  • Support all major communication formats and secondary pager format
  • SIA CP01 compliant versions available
  • Include transformer

Tech Specs

Current and Voltage Ratings

  • Alarm Output
    • Burg: 12 VDC, 2A (max.)
    • Fire: 12 VDC, 65 mA
  • Output Current Limiting
    • Burg/Fire: 2.25 A
    • AUX Power: 750 mA
  • Residential Burglary (4 Hour Standby)
    • Combined Standby Current: 500 mA
    • Bell Output: 2 A (Using Rechargeable 12 VDC 4 AH BATTERY, minimal requirement)
  • Residential Fire (4 Hour Standby)
    • Combined Standby Current: 500 mA
    • Bell Output: 65 mA (Using Rechargeable 12 VDC 4 AH BATTERY, minimal requirement)
  • Residential Fire (24 Hour Standby)
    • Combined Standby Current: 120 mA
    • Bell Output: 95 mA (Using Rechargeable 12 VDC 7 AH BATTERY, minimal requirement)

Transformer and Battery

  • Required Transformer: NAPCO TRF12 OR BASLER 16.5 VAC 20VA
  • Required Battery: 12V 4 AH or 7 AH Rechargeable (Change Battery every 5 years or as required)
  • Maximum Charging Current: 165 mA
  • Maximum Input Current: 2.58 A

Loop Characteristics

  • Loop Voltage: 5 Volts
  • Loop Current: 1.1 mA
  • Loop Resistance: 100 ohms per zone (max.)

Device Specifications

  • Max # keypads: 4, GEM-RP8 current = 65 mA
  • Max # of receivers: 2, GEM-RECV-XP8 current = 65 mA each
  • Max # of compatible 2-wire smoke detectors: 10
  • Max Keypad wire length: 1000 feet total wire length
  • Housing Dimensions: 11(H) x 12-1/8(W) x 3(D) inches (28 x 30.8 x 7.6 cm)
  • Weight: 5.5 pounds
  • Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
  • Listings/Approvals:
    • UL HOUSEHOLD FIRE AND BURGLARY WARNING SYSTEM CONTROL UNIT, STANDARDS # 1023, 985
    • California State Fire Marshal (CSFM) – Control Unit (Household) # 7187-0992:126
    • VERIFIED TO COMPLY WITH F.C.C. PART 15 AS CLASS B : DIGITAL DEVICE
