Napco Gemini P816 Security System Kit with GEM-RP1CAe2 Keypad

$217.54
SKU: NP816PREMPAK

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

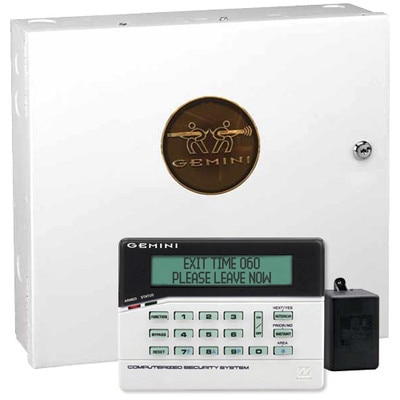

In The Box:

  • GEM-P816 Control Panel
  • GEMRP1CAe2 Keypad
  • Transformer.

GEM-P816 Control Panel

Economical hardwire/wireless control panel that works seamlessly with all standard Gemini keypads and wireless.

  • 8 Hybrid zones on-board, including 2 2-wire fire zones.
  • With multiplexing, the P816 can be increased up to 16 EOL zones.
  • Up to 16 user codes
  • Supports up to 7 keypads
  • EZ Programming at keypad
  • 256 event logging
  • Supports 2 Gemini receivers
  • Interior bypass group
  • Auto arm
  • 3 outputs

All Gemini hybrid controls feature:

  • Multiplex expandability using built-in EZMs in custom alpha keypads or 8-zone expansion modules (except GEM-P800)
  • Up/Downloading, including unique PC-preset unattended method
  • EZ-Programming mode at keypad
  • Choice of Gemini RF receivers and transmitters
  • Multi-stage lightning protection
  • Event log with open/close suppression
  • NetLink intranet/internet alarm reporting option
  • X-10 Support with optional GEM-X10 interface
  • Telco line cut supervision
  • Support for VOIP (voice over internet protocol) communications
  • Support all major communication formats and secondary pager format
  • SIA CP01 compliant versions available
  • Include transformer

GEM-RP1CAe2 Keypad:

The GEM-RP1CAe2 is a "smart" user-friendly, interactive menu-driven keypad designed for your Napco control panel. Its alphanumeric screen will not only display the status of your system, but will also give you step-by-step instructions to guide you through all operations.

Tech Specs

Control Panel:

  • Input Power: 16.5VAC via Class 2 Plug-in 20 VA transformer
  • Aux and Remote Power: 12VDC regulated
    • 500 mA standby current rating with 20VA transformer, supplied
    • 650 mA standby current rating with optional 40VA trans. 650mA
  • Alarm Current: 2A
  • Loop Resist. 300 ohm max.; 50 ohm max for 2-wire fire
  • Burg. Voltage Output: -1; programmable negative outputs -2
  • Operating Temperature: 0 to 49° C
  • Communication Formats: Ademco Point ID, Silent Knight Fast/Slow, Radionics Fast/Slow, Universal High Speed, SIA and Pager.
