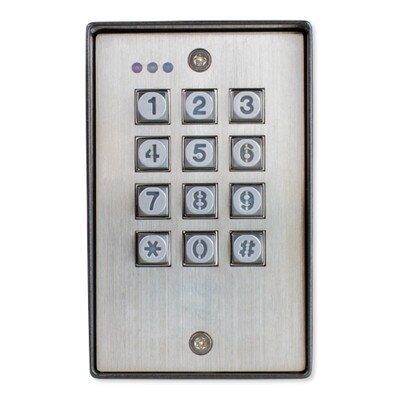

Seco-Larm Enforcer Access Control Keypad, Outdoor, Surface Mount
Product Description
- 1,100 Users over 2 Outputs. Codes may be 4~8 digits: – Output #1 – Form C relay, 1A@30VDC, 1,000 users – Output #2 – Form C relay, 1A@30VDC, 100 users
- Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours).
- Super user code gives admin access to keypad.
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours).
- Programmable egress input with optional warning alarm and delayed egress.
- Real-time clock to auto-disable access at specific times.
- Up to 50 (01~50) duress codes for output #1 and 10 (01~10) for output #2.
- Duress code signals a silent alarm if an authorized user is forced to open the door under duress.
- 12~24 VDC/VAC Auto-adjusting operation.
- All features are programmed directly from the keypad: No need for an external programmer.
- IP66 Weatherproof Rating.
- Mounts to a standard single-gang back box (surface-mount back box included).
- Durable and attractive stainless steel faceplate.
- Tamper output: N.C. Dry contact, 50mA@24VDC max.
- Keypad illuminates when a button is pressed; backlight can be programmed for
- FULL, AUTO, or OFF in standby mode.
- Mantrap: for a protected area with two doors, this feature allows only one door
- to be open at a time.
- Door sensor input for anti-tailgating operation.
- Door-propped-open warning.
- Door-forced-open warning.
- EEPROM Memory protects programmed information in case of power loss.
In The Box:
- Keypad
- Back Box
- (2) Installation Screws
- (3) Mounting Screws
- (3) Mounting Screw Anchors
- Security Wrench
- Diode
- Manual
Tech Specs
- Part Number: SK-1123-SDQ
- Operating Voltage: 12~24 VDC/VAC
- Current Draw (at 12VDC):
- Standby: 66mA
- Keypress: 93mA
- Output 1 active: 99mA
- Output 1 & 2 active: 126mA
- Total Max. Current Draw: 160mA
- Outputs:
- #1 – Form C: 1A at 30VDC
- #2 – Form C: 1A at 30VDC
- Key Active: 100mA at 24VDC
- Duress: 100mA at 24VDC
- Interlock: 100mA at 24VDC
- Tamper: N.C. Dry Contact: 50mA at 24VDC max.
- Inputs:
- Egress: N.O. Ground
- Door Sensor: N.O. Ground
- Door Inhibit: N.O. Ground
- Operating Temperature: -4° to 158°F (-20° to 70°C)
- Operating Humidity: 5 to 95 percent non-condensing
- IP Rating: IP66
- Dimensions (including back box): 4-15/16 x 3-1/8 x 2-1/16 inches (125 x 79 x 52 mm)
- Weight: 1 pound, 2 ounces (520g)
- Warranty: Limited Warranty
