Features

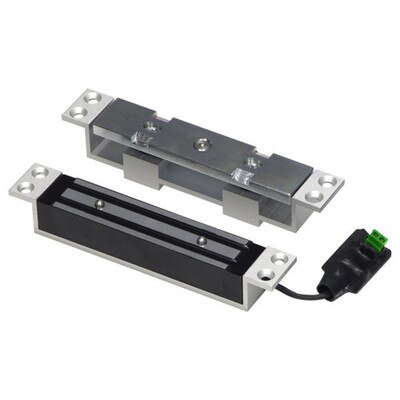

• Concealed security for remote access and exit control of aluminum and steel doors or gates.
• Works with sliding, single-action, and double-action (swing-through) doors and gates.
• Plated steel plugs and magnetic bond holds doors securely in place with approximately 1,500 pounds (680kg) of shear holding force.
• Fail-safe operation (unlocks if power is lost).
• Internal adjustable door position switch prevents locking until the door has come to rest.
• Magnet and dry reed contact switch determine door position for positive locking.
• Armature plate adjusts to compensate for gaps between door and frame.
• Use with an optional digital keypad for keyless high security.
• Easily connects to SECO-LARM's SK-1011-SQ Electronic Keypad.
• Magnet housing dimensions (faceplate) - 7-1/8"x1-3/16"x1-1/16" (180x30x27 mm).
• Magnet housing dimensions (cavity) - 5-13/16"x1-3/16"x1-1/16" (147x30x27 mm).
• Armature assembly dimensions (faceplate) - 7-1/8"x1-3/16"x1-5/8" (180x30x42 mm).
• Shallow design for use with most metal door jambs.
• Zinc-plated magnet and armature, and aluminum anodized housings.
• Power - 12VDC (420mA) or 24VDC (210mA).
• Door gap - Max. 1/16" (2mm).
