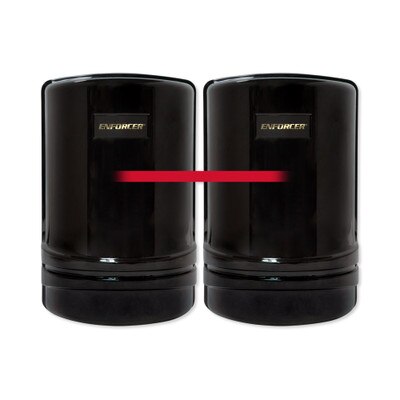

Seco-Larm Enforcer Multi-Frequency Single Photobeam Sensor, 50 Ft.
Product Description
The E-964-S50TB is a simple, easy-to-use, and easy-to-install single-beam infrared motion sensor with 4 selectable frequencies. The device easily installs almost anywhere to provide an invisible beam that, when broken, sends a signal to activate a light, beeper, or other device. This makes the device perfect for use as part of an access control system, a door or window monitor, a retail store customer alert, or many other places where the user needs to know that someone has entered a specific room or building or other protected area. The E-964-S50TB is weather-proof, and comes with a built-in AGC control circuit that helps to filter out possible disturbance caused by local lighting conditions.
- 4 selectable frequencies to reduce interference
- Up to 50ft (15m) sensing distance
- Small size for a less conspicuous installation
- Simple to install
- Built-in AGC control to filter out lighting disturbances
- Signal strength indicator for easier alignment
- LED indicators for power, signal strength, and trigger
- Weatherproof for outdoor as well as indoor use (IP65)
- Mounting hardware included
In The Box:
- Transmitter
- Receiver
- 4 x Screws
- 4 x Plastic wall anchors
- Manual
NOTE: Requires connection to alarm panel and power supply, not included. For best operation, allow a minimum of 40 inches (1 meter) between the transmitter and receiver.
Tech Specs
- Part Number: E-964-S50TB
- Number of Beam Channels: Single infrared beam
- Number of Beam Frequencies: 4
- Sensor Range: Up to 50 feet (15m)
- Infrared LED Wavelength: 940nm
- LED Beam Spread Angle: Approximately ± 10 degrees
- Interrupt Speed*: 50ms
- Input Power: 10~24VDC
- Current Draw (max):
- Transmitter: 15mA at 12VDC
- Receiver: 30mA at 12VDC
- Relay Output: NO/NC relay (set by jumper, default is N.C.) 0.5A at 30VAC/VDC
- LED (Transmitter): Green – Indicates connected to power
- LEDs (Receiver):
- Power (Green): Indicates connected to power
- Signal (Yellow): Indicates receiver's signal is weak or beam is broken
- Alarm (Red): Indicates transmitter and receiver are not aligned or beam is broken
- IP Rating: IP65
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Maximum Humidity: 95 percent
- Dimensions: 3-11/16 x 2-3/8 x 1-13/16 inches (94 x 60 x 46 mm)
- Weight: 2.6 ounces (74g)
- Warranty: 1 Year
