Seco-Larm Magnetic Door Holder
Product Description
The SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications. The UL Listed SECO-LARM Magnetic Door Holders, used in conjunction with UL Listed SECO-LARM door closers, control the release and closing of residential, commercial, and public area doors including apartments, schools, hotels, hospitals, and offices. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation. SECO-LARM Magnetic Door Holders come in surface-mount or flush-mount models with full mounting hardware included.
- For use with door closers to control the release and closing of residential, commercial, and public area doors
- Adjustable armature plate reduces installation time and adjusts to door alignment changes
- Low profile design
- Holding force: 33-lb (15kg)
- 3 voltages: 12/24 VAC/VDC, and 120VAC
- Cast aluminum faceplate
- No residual magnetism for easy release
- Built-in voltage spike suppressor
- Use with SECO-LARM door closers
- Optional extension bars available: 1/2", 3/4", 1", 2", 3", 4", 5", 6", 7" (13mm, 19mm, 25mm, 50mm, 76mm, 102mm, 127mm, 152mm, 178mm)
In The Box:
- Door holder
- Armature plate
- Back box (DH-151SQ only)
- 2 x #10*11/4" Wood screws
- 4 x 4*8 Machine screws
- 2 x 3*10 Machine screws
- 2 x 5*15 Machine screws
- 2 x Jumpers
- Manual
NOTE: Does not include required Seco-Larm door closer.
Tech Specs
- Part Number:

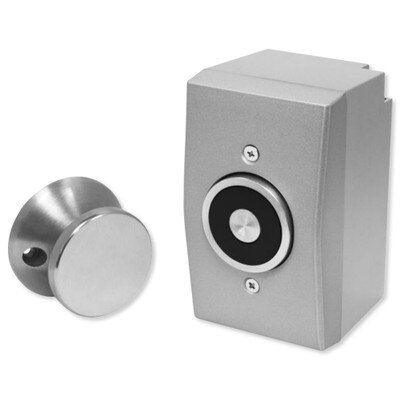

- Surface-Mount: DH-151SQ

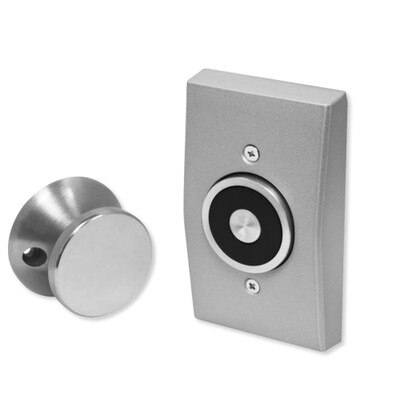

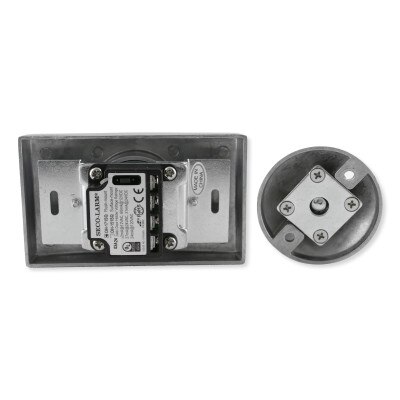

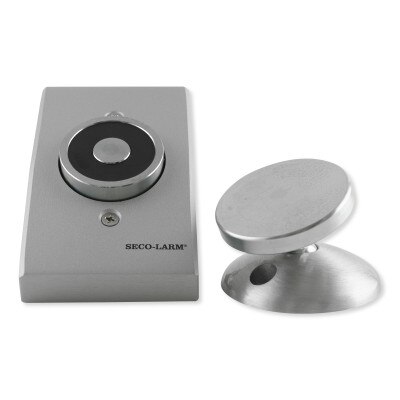

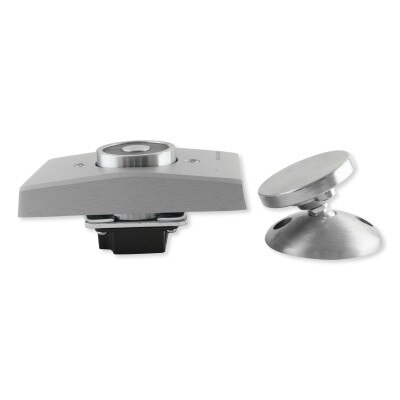

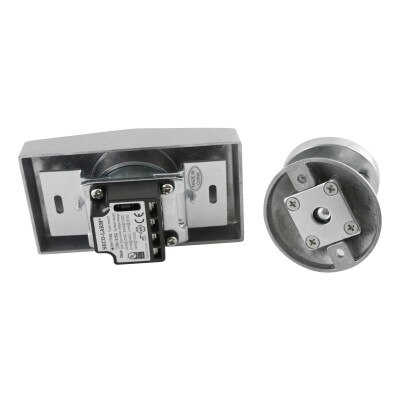

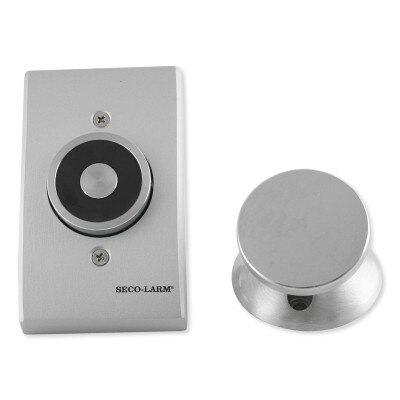

- Flush-Mount: DH-171SQ
- Operating Voltage: 12/24 VAC/VDC, 120VAC
- Current Draw:
- 52mA at 12VAC, 60mA at 12VDC
- 27mA at 24VAC, 31m at 24VDC
- 24mA at 120VAC
- Holding Force: 33 pounds (15kg)
- Magnet Dimensions:
- Surface-Mount: 2-3/4 x 4-9/16 x 3 inches (70 x 116.5 x 76 mm)

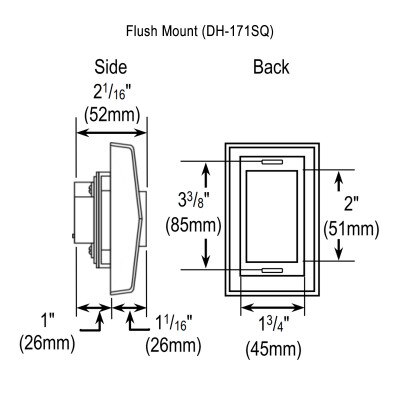

- Flush-Mount: 2-3/4 x 4-9/16 x 2-1/16 inches (70 x 116.5 x 52 mm)
- Armature Dimensions: 2-9/16 x 2-9/16 x 1-9/16 inches (65 x 65 x 40 mm)
- Magnet Box Weight:
- Surface-Mount: 1 pound 6.4 ounces (635g)
- Flush-Mount: 1 pound 1.5 ounces (496g)
- Door Armature Weight: 8.1 ounces (230g)
- Approvals: UL, CE, RoHS
- Warranty: 2 Years
