SkylinkHome Lighting & Garage Door Starter Kit

$57.50 $84.53
SKU: SKSK4

5 available at this price.

Shop More From Skylink

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

This easy to install, entry-level kit comes with a push buttom remote with the ability to control various lighting scenarios as well as your garage door. You can easily expand on this system with range extenders and additional receivers to really cusomize your home.

Features:

  • Push a button on the remote to control.
  • ON/OFF/Dimming* function.
  • Works with Incandescent and CFL bulbs, up to 300W load.
  • Create zones with multiple lights, achieve zone on/off/dimming.
  • Operates garage door opener with the same remote.
  • Wireless remote control range is up to 500 feet in open area.
  • Easy to install.

* For dimming function, light bulbs must be dimmable.

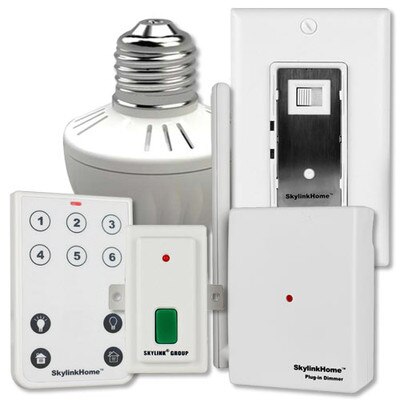

In The Box:

  • Transmitter (TC-318-10)
  • Plug In Dimmer (PL-318)
  • Screw In Dimmer (LX-318)
  • Wall Dimmer (WR-001)
  • Smart Button Receiver (GB-318)

Available for sale only in the U.S.

Tech Specs

Transmitter Model TC-318-10 Functions and Features

  • Credit Card sized transmitters: Can be carried with you and used to control many applications.
  • Up to 500 feet operating range in an open area: Long range, no problem.
  • Three different button transmitters: 7 button, 10 button and 14 button; choices for different applications.
  • Can dim if controlling a dimmable receiver and dimmable load: Only SkylinkHome wireless can control dimmable CFL light bulbs.
  • Control devices and / or up to 10 zones with unlimited devices in each zone: Good for large homes and business with different lights and applications.
  • With Zone on / Zone off Function: Control multiple lights in one zone up to 10 zones.
  • Zone dimming: Allows multiple lights to be dimmed in the same zone.
  • All On / All Off: Turn all devices on / off, good when leaving home and coming back.
  • Password setting: For security purposes in case transmitter is lost.
  • Long life lithium battery included: Pre-installed lithium battery CR-2032.
  • Mounting Bracket included: Mount on the wall with screws or dock the transmitter on the wall.
  • Changeable Transmitter ID: Changing the ID will erase the transmitter from all the programmed receivers.

Plug In Dimmer Model PL-318 Functions and Features

  • No wiring connection, just plug in to the wall outlet: Plug the lighting fixture to this unit, plug and play.
  • Lighting control: ON/OFF/ Dim operation – Dimming function only applies to dimmable load.
  • Operation modes (up to 300W load)
    1. ON/OFF
    2. Countdown timer
    3. Flashing Alert
  • Up to 500 feet operating range in an open area: Long range, no problem.

Screw In Dimmer Model LX-318 Functions and Features

  • No wiring connection, just screw in to a lamp socket: ON/OFF/Dim (Dimming only applies to dimmable load).
  • Operates up to 60W load: Incandescent light bulbs, CFL, LED bulbs
  • Up to 500 feet operating range in an open area: Long range, no problem.

Wall Dimmer Model WR-001 Functions and Features

  • Replace existing wall switch
  • No neutral wire is needed. Easy to install
  • Lighting control – ON/OFF/Dim operation: Dimming function only applies to dimmable load.
  • Operation modes (up to 300W load)
    1. ON/OFF
    2. Countdown timer
    3. Flashing Alert
  • Up to 500 feet operating range in an open area: Long range, no problem.
  • Attractive built-in blue LED light

Smart Button Receiver Model GB-318 Functions and Features

  • Compatible with most Garage Door Openers.
  • One Step Installation: Simply replaces or parallels your traditional wall button with Smart Button.
  • Rolling Code Technology.
  • Smart Button receives signal from remote control and opens / closes garage door.
  • Smart Button works with up to 16 remote controls, additional remote controls can be purchased separately.
  • FCC / IC approved.
