TradeMaster USB Charger & Tamper-Resistant Receptacle

$34.65
SKU: OQTM826USBx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Tamper-Resistant Duplex Receptacles with USB Charging capabilities are designed to upgrade existing receptacles. This product features an improved overall 3.1A USB charging capability in two USB charging ports coupled with two AC receptacles. The screw-pressure-plate back wiring makes installation fast and easy.

Features:

  • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 and 3.0 compatible devices.
  • AC receptacles are tamper-resistant to meet NEC Code – patented shutter system prevents improper insertion of foreign objects.
  • Back and side wire terminals accommodate #14 AWG – #10 AWG stranded and solid copper wire.
  • Multiple color options available.

Tech Specs

  • Part Number:

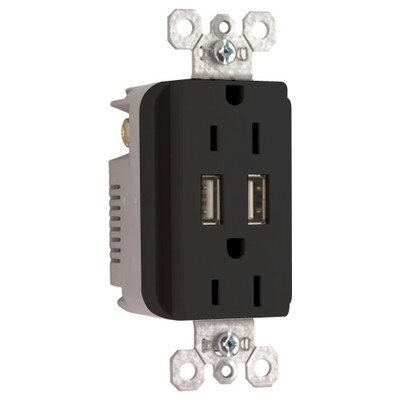

    • Black (TM826USBBK)

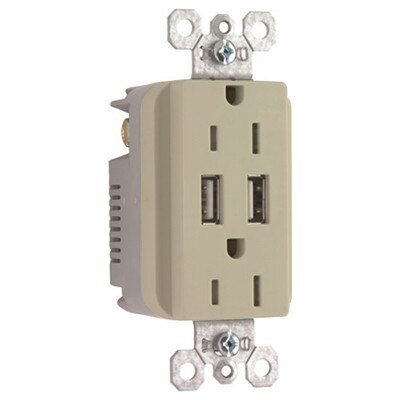

    • Ivory (TM826USBI)

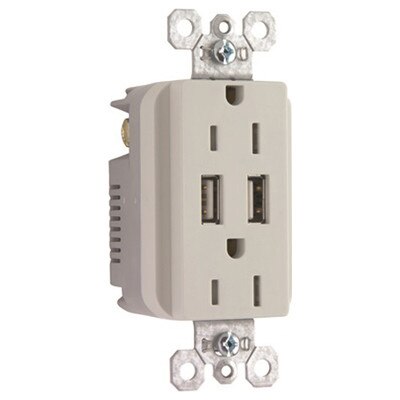

    • Light Almond (TM826USBLA)

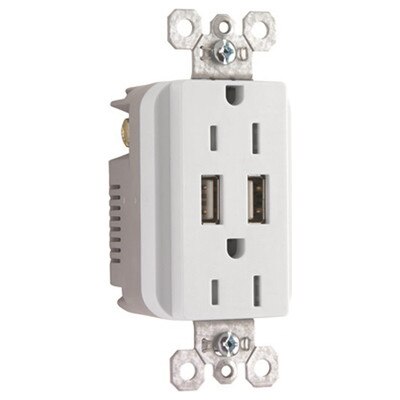

    • White (TM826USBW)
  • Warranty: 1 Year
  • Certifications: cULus listed; Complies with test requirements UL 498, UL 1310, CSA C22.2 No. 42, CSA C22.2 No. 223.

Electrical

  • Dielectric Withstand Voltage: Withstands 1500V minimum
  • Maximum Working Voltage: 125V
  • Current Interrupting: Certified for current interrupting at full-rated current (receptacle only)
  • Temperature Rise: Maximum 30 degrees C after 50 cycles at full-rated current after 50 cycles of overload are 150 percent of rated current with direct current

Mechanical

  • Terminal Identification: Terminal Identification in accordance with UL 498 (Brass, White, Green)
  • Terminal Accommodation: Back and side wire terminals accommodate #14 AWG – #10 AWG stranded and solid copper wire.
  • Product Identification: Ratings are permanent part of the device

Environmental

  • Flammability: UL94 V2 (for device cover) 5V (for device body and frame)
  • Operating Temperature: Maximum continuous 60 degrees C, minimum -40 degrees C without impact

Materials

  • Face: Polycarbonate
  • Body: Nylon
  • Contacts: CDA 260 Brass
  • Mounting Strap: 0.049" Zinc-Plated Steel
  • Terminal Screws: Tri-Drive Zinc-Plated Steel with Either Clear or Black Chromate For Color Identification
  • Ground Screw: Tri-Drive Steel with Green Chromate
  • Mounting Screws: Tri-Drive Steel
