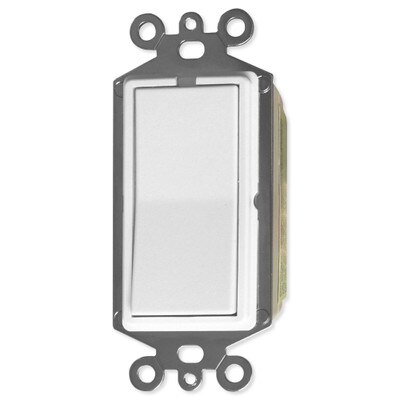

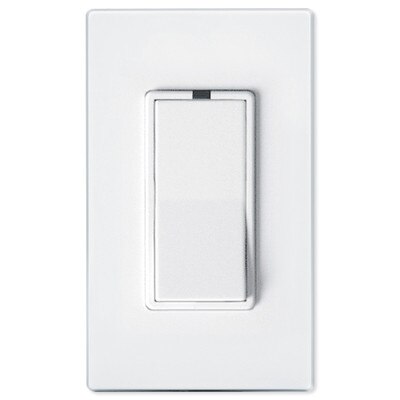

X10 Appliance Wall Switch with Silent Relay

$39.84
SKU: XPXPS4

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The XPS4 is the NEW VERSION of the XPS3! It has been updated and upgraded! Use this relay switch for any sort of appliances, fans, or lighting. Works great with the newer alternative lighting (incandescent, halogen, LED, etc). This is a 20 Amp switch and it can handle most 120v appliances. It does require a neutral wire.

This switch is built with a new, more reliable relay. It is also almost silent! The older XPS3 switch had a very audible noise when turning on and off, no longer! The switch also has AGC (automatic gain control). What this means for you is a more reliable X10 experience as the AGC will weed out some of the line noise directly surrounding the switch.

This switch also houses our Night Light feature. This makes the switch ultra easy to find at night and gives the switch a very classy look! We have made sure to not make it too bright, just a simple glow that will assist you in locating the light during the darkest of nights.

The XPS4 comes with the following benefits:

  • Home Automation Capabilities and Timed Events
  • Allow Remote functioning of lights and appliances with any X10 Controller
  • 20 Amp relay switch for heavy duty 120v appliances like pool pumps and AC units.
  • AGC Automatic Gain Control to help control line noise
  • Near Silent Relay action keeps your switch quiet
  • Night Light LED for locating your switch when it's dark
  • 2 Year Manufacturer's Warranty

The XPS4 is a mechanical, decorative-style, non-dimming, Single-Pole/3-Way wall switch rated for 20amps. It can handle ON/OFF loads as follows: Incandescent (120V Standard or Halogen) Bulbs, Low Voltage Transformers, High Wattage Flood Lights, Fluorescent Lighting, Pumps/Motors and Appliances. The White LED Indicates its "ON/OFF" status. The dim LED will remain ON when the switch is OFF (making it easier to find in darker conditions) and the LED will turn OFF when the switch is ON. Its decorative paddle permits local operation of the switch. The X10 Address Code Dials set the House Code and Unit Number and are located behind the paddle.

X10 Protocol:

  • House Code Dial – Letters A-P (default "A")
  • Unit Number Dial – Numbers 1-16 (default "1") Each X10 Receiver Module is set to a unique Unit Number or to an identical Unit Number as desired.
  • Each X10 Controller operating a specific set of Receiver Modules must be set to the same House (Letter) Code as the Receivers they are controlling.
  • Responds to ALL LIGHTS ON command.

In The Box:

  • X-10 20-Amp Relay Decorator Wall Switch XPS4
  • Set of Interchangeable White/Ivory Paddle Switch Covers

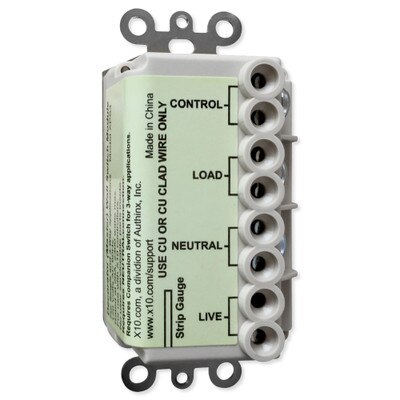

NOTE: Neutral Wire IS required. Ground Wire is not used. Does not include wallplate.

Tech Specs

  • Part Number: XPS4
  • AC Voltage: 120VAC/20A, 60 Hz
  • Load Rating: 1800 Watts, 1/2 HP, 20 Amps
  • Dimmable: No
  • Connection Requirement: Neutral Wire
  • Warranty: 2-Year Limited
