X10 PRO Wired-In Coupler Repeater Amplifier
Product Description

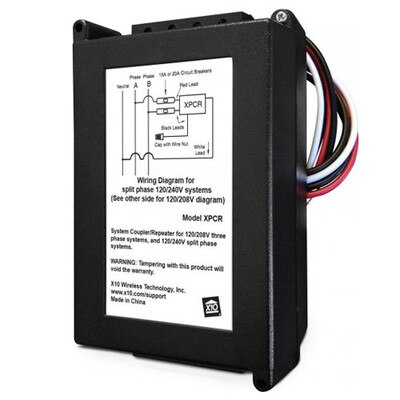

The X10 Phase Coupler/Repeater serves as a signal-bridge across Split-Phase and 3-Phase Power Systems. The XPCR accepts X10 Controller Commands from one phase (L1), regenerates the X10 Command to full signal strength and repeats it to the other phase (L2) and/or phases (L3). The XPCR performs this function in any directions, i.e. – (L1 to L2/L3 or L2 to L1/L3, or L3 to L1/L2). The XPCR's Red LED indicator illuminates when an X10 Command is sent by an X10 Controller and repeated by the XPCR. The XPCR is NOT a filter.
NOTE: Installation must be performed by qualified installers only. The main breaker must be turned-off during installation. The coupler must be installed in a suitable workbox or enclosure per local code. Installation must be in accordance with all applicable codes and requirements, including, but not limited to, the National Electrical Code (NEC).
Tech Specs
- Part Number: XPCR
- Home Size: Over 3,000 sq. feet
- Phase Systems: 2-or 3-phase
- Dimensions: 3(H) x 4.7(H) x 1.6(D) inches (75 x 120 x 40mm)
Specific Requirements:
- 240VAC or 120/208
- Split-Phase System: 120/240V – L1, L2 (cap off last black wire C)
- 3-Phase System: 120/208V (WYE) – L1, L2, L3 (NOT FOR 3-PHASE DELTA Systems)
- Generally for residences 2000 to 2500 sq. feet or larger. Homes with an abundance of electronic devices will be served better with the increased signal strength of the XPCR.
