X10 PRO 16-Channel Wireless Base Transceiver Module

$53.87
SKU: XPPAT03

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

This is the new version of the PAT01 and has been dramatically improved! We now have a new amplifier in the unit's internals which boosts the regular X10 signal sent by the PAT03 to up to 10 TIMES the power as before. This means a more powerful and reliable X10 signal. With longer distance and less fuss with electrical noise, the PAT03 is a worthy upgrade for any X10 system!

In addition to a boosted signal, this unit has AGC (Automatic Gain Control). This essentially reduces the noise surrounding the unit, also adding to a more reliable X10 signal through your home!

  • Add RF Remote Control to Your X10 Devices.

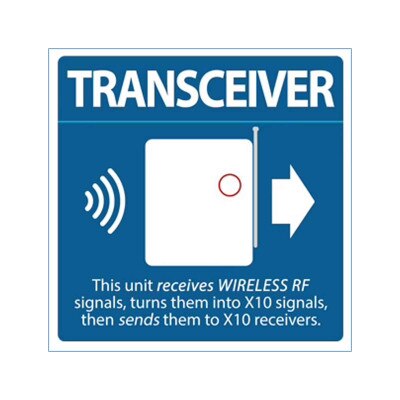

  • Converts Radio Frequency signals from X10 PRO wireless controllers.
  • Use with the PHR04, PHW04D, PHR03 and other devices to X10 control signals.

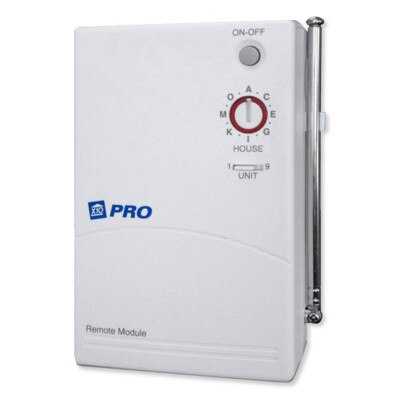

Now you can easily control lights and appliances from up to 100ft away – even through walls – with this X10 PRO Transceiver Module. This powerful module works with handheld wireless remote controllers such as the X10 PRO 16-Plus Remote (PHR03) to control its built-in switched outlet and up to15 additional X10 modules via the powerline. You can also control the Transceiver Module by other X10 powerline controllers such as the X10 PRO Mini Controller (PMC01).

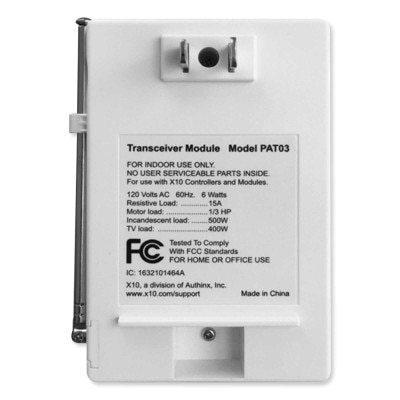

Tech Specs

  • Part Number: PAT03
  • Power Requirements: 120 VAC, 60 Hz, 6 Watts
  • Maximum Loads:
    • Resistive: 15A
    • Motor: 1/3 HP
    • Incandescent: 500W
    • TV/Stereo: 400W
  • Wireless Range: 100 Feet
  • Approvals: FCC, IC
  • Environmental Conditions: Indoor use only
  • Warranty: 2 Years
