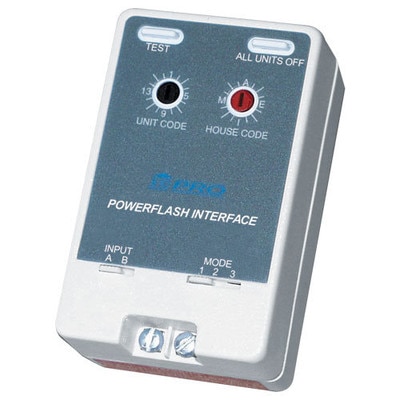

X10 PRO Plug-In Powerflash Security Interface Module
Product Description
The PowerFlash Interface SENDS an X10 Signal in response to a "Make or Break" contact from a Security Panel, Driveway Sensor, Doorbell, Magnetic Door/Window Switch, you name it! If it's got an output, it can probably trigger the PowerFlash. The Module can be activated by a low voltage output or a dry contact switch closure. Upon activation, the PSC01 sends an X10 ON type Signal. The Module becomes deactivated when the low voltage is removed or the dry contact switch is opened and an OFF type Signal is sent. See Output Modes below, for Signal types.
Tech Specs
- Compatibility: Use with output devices to send X10 signals
- Activation: Dry contact or low voltage (6-18VDC)
- Inputs:
- Input A: 6-18VAC/DC or audio at Input Terminals (i.e. Bell Voltage from Alarm panel).
- Input B: Dry contact closure at Input Terminals (i.e. Doorbell button, or contact switch)
- Power Rating: 120VAC, 60Hz
- Consumption: 2 Watts
- Environment: Indoor use only
- Warranty: 2 Year Limited
