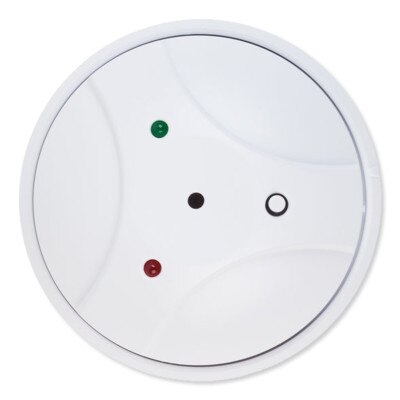

2GIG Wireless Glass Break Detector
Product Description

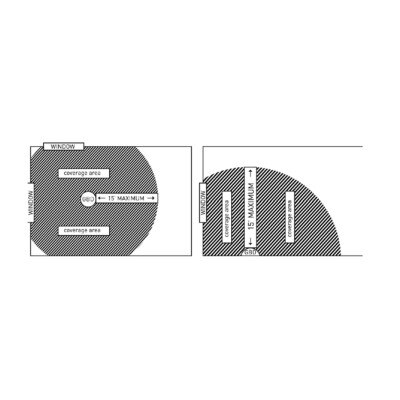

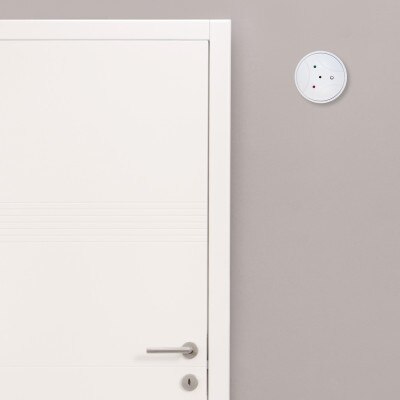

This 2GIG sensor detects when glass has been broken using Dual Shatter recognition technology. The Glass Break Detector is a fully supervised, tamper-protected, ceiling or wall-mounted unit with 15 feet maximum detection range, 360-degree maximum horizontal sensing angle, and dual-stage glass break detection.
- Monitors for the sound of breaking glass
- Two test LEDs
- Dual shatter recognition technology
- Lithium battery
- Transmits 345 MHz
- ETL Listed
In The Box:
- Sensor
- Mounting base
- 2 x Lithium batteries
- 3 x Phillips head screws
- 3 x Wall anchors (plastic)
Tech Specs
- Part Number: 2GIG-GB1-345
- Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
- Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
- Transmitter Frequency: 345.000 MHz (crystal controlled)
- Transmitter Frequency Tolerance: ±15kHz
- Transmitter Bandwidth: 24kHz
- Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
- Unique ID Codes: Over one million different code combinations
- Supervisory Interval: 70 minutes
- External Input Sampling Current: 20 uA
- External Input: 24V AC Standard doorbell circuit
- Sensor Dimensions: 2.57 x 1.17 x 0.63 inches (6.98 x 2.97 x 1.60 cm)
- Weight: 1.1 ounces (31.2 g), including battery and magnet
- Housing Material: ABS plastic
- Color: White
- Operating Temperature: 14° to 104° F (-10° to 40° C)
- Relative Humidity: 5 to 95 percent Non-Condensing
- Battery: One Panasonic CR2032 or equivalent Lithium battery (installed)
- Included Accessories: Four Phillip's flat-head screws
- Warranty: 2-Year Limited
