2GIG Hardwire Conversion Kit
Product Description
Are you looking to upgrade an existing wired security system to a wireless one? Whether you are replacing an older, wired security system or want to retrofit the pre-wired security sensors common to new construction, the 2GIG Hardwire Conversion Kit (2GIG-TAKE-KIT1) is the ideal solution and its easy to install.
- 2GIG Super Switch Takeover Module which uses the patented technology for Wireless Takeover of an Alarm System (US Patent No. 8,638,218)
- Power Supply Board with a battery backup charging unit.
- Grounded plug-in transformer with LED indicator for power supervision
- ABS Plastic wall-mounted enclosure meets UL 94: V-0 Flammability Standards
Leveraging 2GIG's patented wireless takeover technology, each kit includes one (1) Super Switch Takeover Module, which converts up to eight (8) wired sensors to 2GIG wireless zones. The kit also includes a Power Supply Board with backup battery charging circuit, a Grounded Plug-in Transformer, and a ABS plastic enclosure that includes a dedicated space for your backup battery (battery not included).
The enclosure also houses up to two (2) additional Super Switch Takeover Modules, which increases your capacity to convert up to 24 wired sensors to wireless zones.

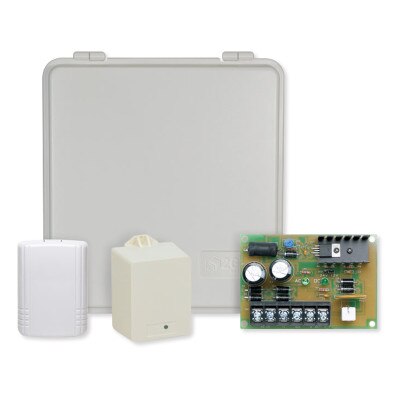

In The Box:
- ABS Plastic Enclosure (UL 94: V-0)
- 2GIG Super Switch Takeover Module (2GIG-TAKE-345)
- 12/24 VDC Power Supply Board
- 16.5 VAC 50 VA Grounded Plug-in Transformer
- Mounting Hardware
Tech Specs
- Part Number: 2GIG-TAKE-KIT1
- Warranty: 1-Year Limited
Enclosure
- Material and Certification: ABS Plastic UL 94: V-O
- Dimensions: 11.5 x 12.5 x 4 inches (29.2 x 31.8 x 10.2 cm)

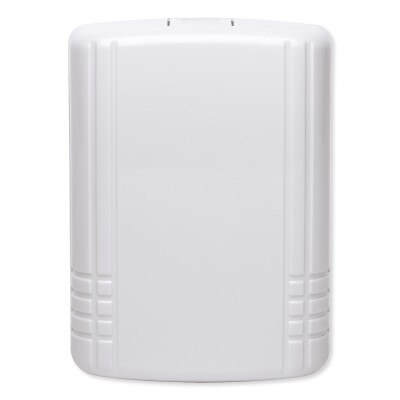

Super Switch Takeover Module (2GIG-TAKE-345)
- Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
- Code Outputs: For each of 8 serialized zones: Fault; Restore; Tamper; Low Battery
- Transmitter Frequency: 345.000 MHz (crystal controlled)
- Transmitter Frequency Tolerance: ±15kHz
- Transmitter Bandwidth: 24kHz
- Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
- Unique ID Codes: Over one million different code combinations
- Supervisory Interval: 70 minutes
- Peak Field Strength: Typical 50,000 uV/m at 3m
- Dimensions: 3.54(L) x 2.56(W) x 1.13(H) inches (9.0 x 6.5 x 2.9 cm)
- Weight: 2.85 ounces (80.8 g)
- Housing Material: ABS Plastic
- Color: White
- Operating Temperature: 32° to 120° F (0° to 49° C)
- Relative Humidity: 5 to 95 percent Non-Condensing
- Operating Voltage: 9-16 VDC, 50mA
- Certification: ETL, FCC, IC

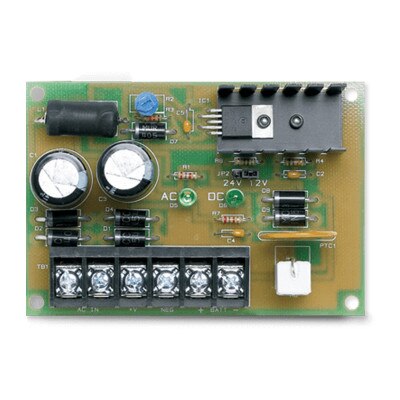

Power Supply Board
- Input: 16.5 VAC, 20 VA
- Output: 12/24 VDC
- Battery Backup: Built-in charger for sealed lead or gel type batteries, automatic switchover to standby when AC fails
- Visual Indicators: AC input and DC output LED indicators

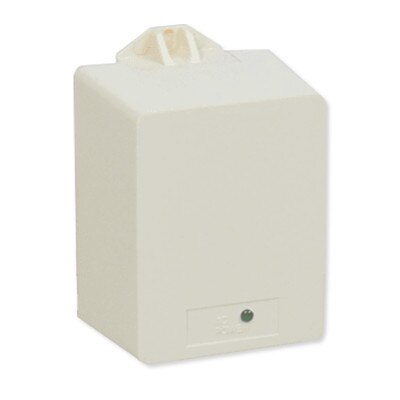

Grounded Plug-in Transformer
- Primary: 120 VAC 60Hz
- Secondary: 16.5 VAC 50 VA
- LED Indicator: Supervises power
- Primary Termination: 2 male blades and grounding pin
- Secondary Termination: 3 #6-32 screw terminals with washers for secure contact
- Dimensions: 2.88(W) x 2.25(D) x 3.88(H) inches (7.3 x 5.7 x 9.9 cm)
- Weight: 1.5 pounds
- Color: White
- Surge Protection:
- 3 Mode Protection: Line, Neutral, and Ground
- Clamping Voltage: 340 volts
- Max. Spike Current: 4500 amps
- Energy Dissipation: 60 joules
- Max. Spike Voltage: 6000 volts
- Clamping Response Time: 25 nanoseconds
- Certification: UL and ULC Listed
Requirements
- 2GIG GoControl Panel Wireless Security System
- 12V, 1.4 AH Rechargeable Sealed Lead Acid Battery (or better)
Add-On Components
- Backup Battery (Required). One (1) 12 V, 1.4 AH Rechargeable Sealed Lead Acid Battery (or better) is required
- 2GIG-TAKE-345: Super Switch Takeover Module (Optional). Add up to two (2) additional modules in the enclosure
- Linear H208: Lock Kit (Optional). Recommended for locking the plastic wall-mount enclosure with a key for additional security.
