2GIG SecureNet Rely Kit with Camera

$124.00 $344.99
SKU: LN2GIGRELYKIT3

1 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

2GIG Rely offers professional grade security at a price many homeowners can afford. The Rely system has a sleek design and can cover various types of properties, keeping you safe when you're home or away. 2GIG Rely is an ideal solution to protect your cabin, beach house, or rental home when you can't be there, plus, when it comes time to moving into your next home, it can be re-installed using the same panel and sensors. 2GIG Rely sensors connect to other 2GIG systems, allowing you to upgrade your system in the future.

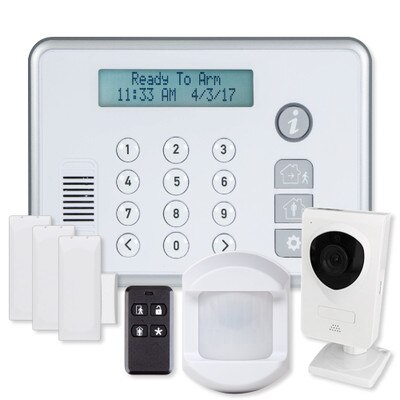

  • Includes the Rely control panel, one Wi-Fi HD camera, three door/window sensors, one motion detector, and a keychain remote
  • Up to 16 sensors can be added, including security or life safety devices such as smoke/carbon monoxide detectors
  • 8 users can be supported, which means everyone in your family can have a personal code
  • Can be mounted on a wall or you can mount it on any surface using the included desk mount
  • Free SecureNet Smartlink+ app:
    • Helps to install the system with easy step-by-step instructions and videos
    • Allows you to see the current status of the system
    • Arms the system when you're home for the night or leaving your home
    • Disarms the system when you come home
    • Watch live or streaming video

In The Box:

  • 2GIG Rely Panel
  • 2GIG Wi-Fi HD Camera (2GIG-RELY-KIT3)
  • 2GIG Wireless Door/Window Sensor (2GIG-DW10-345)
  • 2GIG Wireless Passive Infrared Motion Detector (2GIG-PIR1-345)
  • 2GIG 4-Button Key Ring Remote (2GIG-KEY2-345)
  • User Manual

NOTES: Requires a smartphone with the SecureNet Smartlink+ app (Android or iOS) for the initial set-up, and to monitor the system remotely. Indoor Wi-Fi HD Camera requires 120VAC outlet.

Tech Specs

  • Part Number: 2GIG-RELY-KIT3

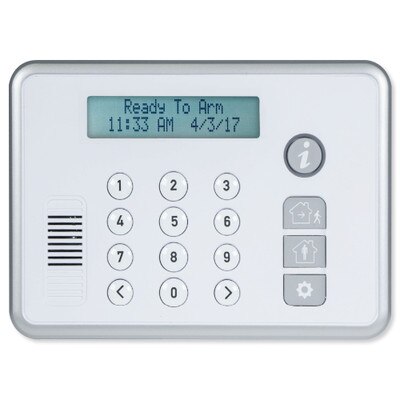

2GIG Rely Panel

  • Power Input: 100-240 VAC, 50-60 Hz
  • Power Output: 5V, 1.5A, 7.5W max
  • Mobile App: SecureNet Smartlink+ app
    • Android (4.1 or later)
    • iOS (9.0 or later)
  • Back-Up Battery: Flat Lithium, 4.44Wh 3.7V (included)
  • Peak Current: 1.7A
  • Cellular Network: 3G GSM AT&T Radio
  • Radio Frequency: 908.4MHz US
  • Operating Temperature: 32° to 120° F (0° to 49° C)
  • Storage Temperature: 30° to 140° F (34° to 60° C)
  • Max. Relative Humidity: 90% non-condensing
  • Dimensions: 3.8(H) x 5.2(W) x 0.9(D) inches (96.52 x 132.08 x 22.86 mm)
  • Certifications: UL, FCC, CE, RoHS
  • Warranty: 1-Year Limited

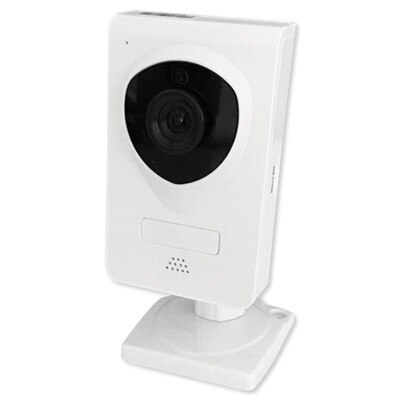

Indoor Wi-Fi HD Camera (2GIG-CAM-101-NET)

  • Video Resolution: 720p (1280 x 720, 640 x 360, 320 x 180)
  • Compression: H.264 and MJPEG (32kbps -2Mbps)
  • Night Vision: 4 IR LEDs (15 feet range)
  • IR-Cut Filter: Yes
  • Camera Sensor: 1/4-inch CMOS, 1 Mega Pixel
  • Lens: 3.6mm
  • Viewing Angle: Horizontal: 60°
  • Frame Rate: 1 to 30 FPS
  • Pan/Tilt: No
  • Audio: Two-Way
  • Wi-Fi Connectivity: 802.11 b/g/n (2.4Ghz)
  • Wired Connectivity: 10/100 Mbps RJ45 Ethernet
  • Setup: WPS, Wired
  • Motion Detection: Yes
  • Video Storage: MicroSD (not included)
  • Power Input: 5V DC, >4W
  • Regulatory Listings: FCC, RoHS
  • Warranty: 1-Year Limited

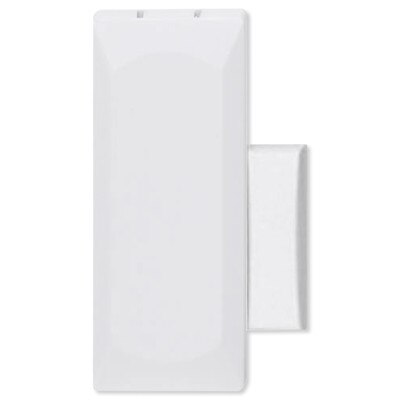

Door/Window Contact (2GIG-DW10-345)

  • Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
  • Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
  • Transmitter Frequency: 345.000 MHz (crystal controlled)
  • Transmitter Frequency Tolerance: ±15kHz
  • Transmitter Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
  • Unique ID Codes: Over one million different code combinations
  • Supervisory Interval: 70 minutes
  • Peak Field Strength: Typical 36,000 uV/m at 3m
  • External Input Sampling Current: 20 uA
  • External Input: Accepts N/C dry contact devices
  • Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
  • Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
  • Magnet Dimensions: 1.3(L) x 0.435(W) x 0.312(H) inches (3.3 x 1.1 x 0.79 cm) typical
  • Magnet Type: Rare earth
  • Sensor Dimensions: 2.59 x 1.03 x 0.49 inches (6.58 x 2.62 x 1.24 cm)
  • Weight: 1.1 ounces (31.2 g), including battery and magnet
  • Housing Material: ABS plastic
  • Color: White
  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • Relative Humidity: 5 to 95 percent Non-Condensing
  • Battery: Two Panasonic CR2032 or equivalent Lithium batteries (installed with pull tab)
  • Included Accessories: Two Phillips flat-head screws
  • Warranty: 2-Year Limited

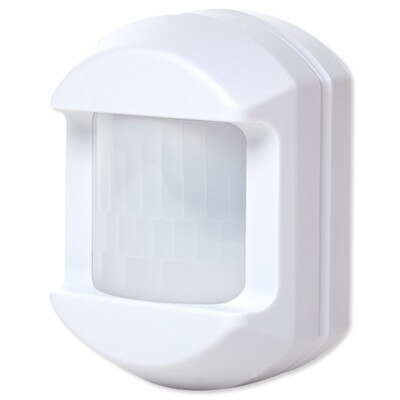

Passive Infrared Motion Detector (2GIG-PIR1-345)

  • Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
  • Code Outputs: Alarm; Alarm Restore; Tamper; Tamper Restore; Supervisory; Low Battery
  • Transmitter Frequency: 345.000 MHz (crystal controlled)
  • Transmitter Frequency Tolerance: ±15kHz
  • Transmitter Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
  • Unique ID Codes: Over one million different code combinations
  • Supervisory Interval: 70 minutes
  • Peak Field Strength: Typical 50,000 uV/m at 3m
  • Sensor Type: Quad element
  • Pet Immunity: Selectable – 15 kg (33 lbs) or 25 kg (55 lbs; default)
  • Sensitivity Jumper: Selectable – High or Low (default)
  • Suggested Mounting Height: 7.5 feet (2.3 m)
  • Sensor Range: 30 x 50 feet (9.1 x 15.2 m)
  • Max. Horizontal Sensing Angle: 90 degrees
  • Dimensions: 3.2(L) x 2.5(W) x 1.9(H) inches (8.12 x 6.35 x 4.82 cm)
  • Weight: 3.7 ounces (104.9 g)
  • Housing Material: ABS plastic and polycarbonate
  • Color: White
  • Operating Temperature: 32° to 120° F (0° to 49° C)
  • Relative Humidity: 5 to 95 percent Non-Condensing
  • Battery: One (1) Panasonic CR123A or equivalent Lithium battery (included)
  • Regulatory Listings: ETL, FCC Part 15, Industry Canada
  • Included Accessories: Mounting brackets, 2 long Phillip's head screws, 2 plastic wall anchors
  • Warranty: 2-Year Limited

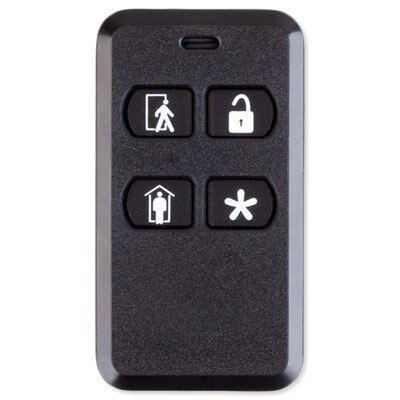

Key Ring Remote (2GIG-KEY2-345)

  • Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
  • Code Outputs: Arm; Disarm; Panic; Relay Control
  • Transmitter Frequency: 345.000 MHz (crystal controlled)
  • Transmitter Frequency Tolerance: ±15kHz
  • Transmitter Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
  • Unique ID Codes: Over one million different code combinations
  • Supervisory Interval: 70 minutes
  • Peak Field Strength: Typical 40,000 uV/m at 3m
  • Dimensions: 1.23(L) x 2.26(W) x 0.45(H) inches (3.12 x 5.74 x 1.14 cm)
  • Weight: 0.65 ounces (18.4 g)
  • Housing Material: ABS plastic
  • Color: White
  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • Relative Humidity: 5 to 95 percent Non-Condensing
  • Battery: One Panasonic CR2032 or equivalent Lithium battery
  • Included Accessories: Key ring
  • Warranty: 2-Year Limited
