2GIG Takeover Hardwire Enclosure Kit
Product Description

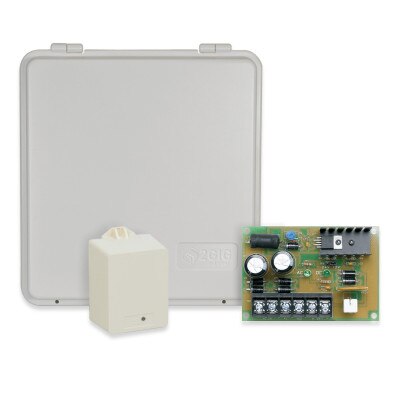

The 2GIG Takeover Hardwire Enclosure Kit includes a 12-5-inch Enclosure, Power Supply Board, and Plug-In Transformer. It's specifically designed to work with the 2GIG Super Switch Takeover Module (sold separately) to help convert hard wired zones of a security system into wireless zones so that the wireless signals can be transmitted to the 2GIG Control Panel. The enclosure is built out of durable ABS plastic material and has enough room to fit up to three (3) Super Switch Takeover Modules, a power supply board with backup battery charging circuit, and a backup battery.
- 12.5-inch enclosure made out of durable ABS plastic material (UL 94:V-0)
- Power Supply Board supports Input @16.5VAC, 20VA and Output @12/24 VDC
- Plug-In Transformer: primary 120VAC 60Hz, secondary 16.5VAC 40VA
- Does not include the 2GIG Takeover Module (part# 2GIG-TAKE-345)
In The Box:
- Enclosure
- Power Supply Board
- Plug-In Transformer
- Manual
NOTE: The 2GIG Takeover Module is sold separately (part# 2GIG-TAKE-345).
Tech Specs
- Part Number: 2GIG-TAKE-ENCL
- UPC: 093863148378
Enclosure
- Material and Certification: ABS Plastic UL 94: V-0
- Dimensions: 11.5 x 12.5 x 4 inches (29.2 x 31.8 x 10.2 cm)
Power Supply Board
- Input: 16.5VAC, 20VA
- Output: 12/24 VDC
- Supervision: Low battery and AC fail supervision for "C" contacts (1 amp @ 28VDC)
- Battery Backup: Built-in charger for sealed lead or gel type batteries, automatic switchover to stand-by when AC fails
- Visual Indicators: AC input and DC output LED indicators
Plug-in Transformer
- Primary: 120VAC 60Hz
- Secondary: 16.5VAC 40VA
- LED Indicator: Supervises Power
- Primary Termination: 2 Male Blades
- Secondary Termination: 2 #6-32 Screw Terminals
- Dimensions: 2.64(W) x 4.05(D) x 2.24(H) inches (6.7 x 10.3 x 5.7 cm)
- Weight: 1.6 lbs
- Color: White
