A&D Wireless Fingertip Pulse Oximeter

$38.40
SKU: ANUP200BLETM

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

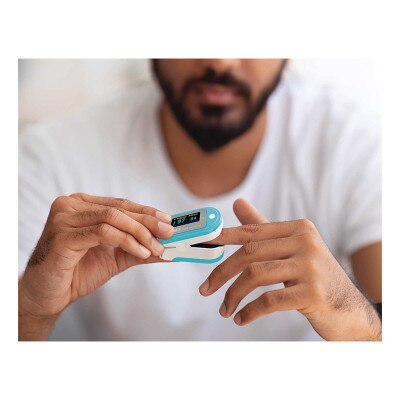

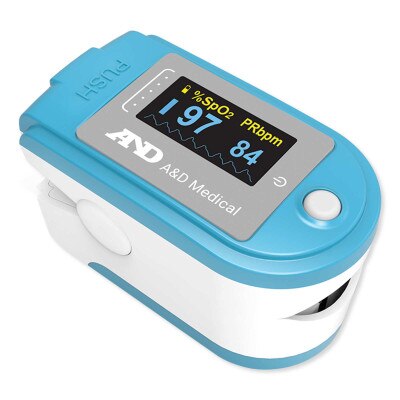

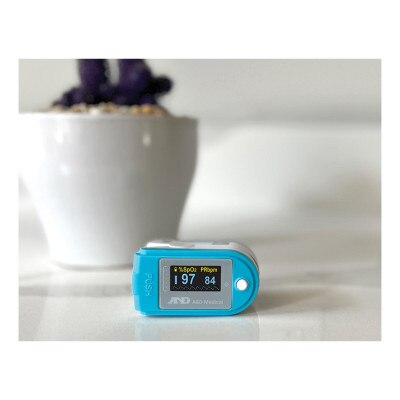

The A&D Wireless Fingertip Pulse Oximeter is a photoelectric sensor that fits on your finger and measures your arterial hemoglobin oxygen saturation (SpO2), pulse rate, and pulse waveform. It's perfect for home or remote use because it comes with a long-lasting battery; plus, you can track and share measurements wirelessly on your smartphone using the free A&D Heart Track App (iOS or Android).

  • Fits on your finger to measure arterial hemoglobin saturation (SpO2), pulse rate, and pulse waveform
  • Connect wirelessly with the A&D Heart Track app to record readings

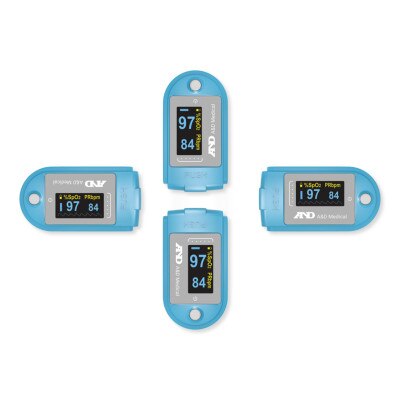

  • Auto screen rotation to view color display from any angle
  • Record measurements anywhere with just one button and long-lasting power
  • Convenient carrying case for storage and travel

In The Box:

  • Pulse Oximeter
  • Instruction Manual
  • Carrying Case
  • Lanyard
  • 2 x AAA Batteries

Tech Specs

  • Part Number: UP-200BLE-TM
  • UPC: 093764604287
  • Storage Environment:
    • Temperature: -40°C to +60°C
    • Relative humidity: <=95%
    • Atmospheric pressure: 500hPa – 1060hPa
  • Operating Environment:
    • Temperature: 10°C – 40°C
    • Relative humidity: <=75%
    • Atmospheric pressure: 700hPa – 1060hPa
  • Measurement of SpO2:
    • Measurement Range: 0 – 100%
    • Accuracy: 70-100%, ±2%; Below 70% unspecified
  • Measurement of Pulse Rate: Measurement Range: 30 bpm – 250 bpm Accuracy: ±2 bpm or ±2%, whichever is greater
  • Power Requirements: 2 x 1.5V AAA alkaline battery (3.0V)
  • Power Consumption: Smaller than 100 mA
  • Resolution: SpO2: 1%, Pulse rate: 1 bpm
  • Optical Sensor: Red light (wavelength is 660nm, 6.65mW) Infrared (wavelength is 905nm, 6.75mW)
  • Dimensions: 1.3(W) x 2.3(L) x 1.3(H) inches (3.2 x 5.8 x 3.4 cm)
  • Weight: 2.0 oz (52 g) with the batteries
