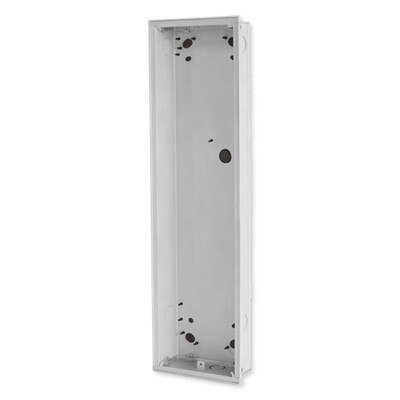

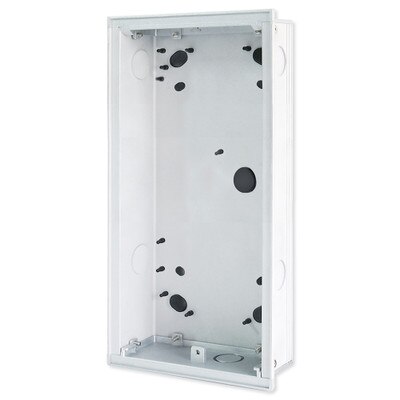

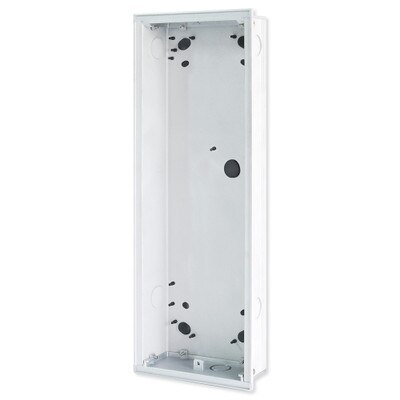

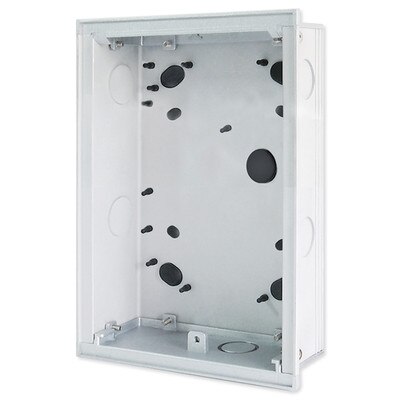

ABB-Welcome Outdoor Station Flush Mount Box
Product Description
The anodized aluminum flush box is fitted with knock down holes for cabling from left, right, bottom, or back. The product is packed with accessories to ensure quality installation.
In The Box:
- Flush-mount box
- Hardware
Tech Specs
- Part Number:
- 1 Gang: 41021F
- 2 Gang: 41022F
- 3 Gang: 41023F
- 4 Gang: 41024F
- 6 Gang: 41025F
- Material: Anodized aluminum
- Size:
- 1 Gang: 1/1
- 2 Gang: 1/2
- 3 Gang: 1/3
- 4 Gang: 1/4
- 6 Gang: 1/6
- Dimensions:
- 1 Gang: 4.96 x 4.88 x 1.81 inches
- 2 Gang: 7.83 x 4.88 x 1.81 inches
- 3 Gang: 10.71 x 4.88 x 1.81 inches
- 4 Gang: 13.58 x 4.88 x 1.81 inches
- 6 Gang: 10.71 x 8.98 x 1.81 inches
- Warranty: 2 Years
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
