ABB-Welcome Gateway
Product Description

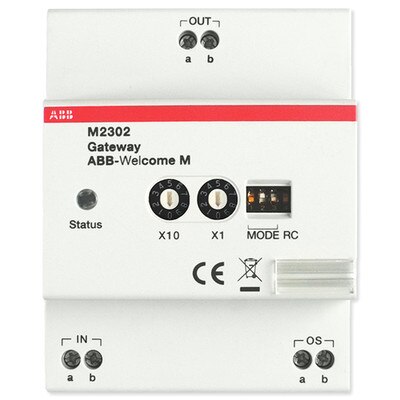

The M2302 gateway is an integral part of the ABB Welcome door communication system and operates exclusively with components from this system. The device must only be installed on mounting rails according to DIN EN 500022.
It offers 5 different modes which can be set by dipswitch: apartment gateway, floor gateway, building gateway, auxiliary BUS power supply interface and line amplifier.
Enable one building as an independent sub-system(-outdoor station(s)/ -guard unit(s) can be connected). Up to 60 such systems are supported within the whole system. The gateway address is equal to the riser number.
NOTE: Connects to ABB System Controller (not included).
Tech Specs
- Part Number: M2302
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Protection: IP20
- Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Bus Voltage: 20-30V
- Dimensions: 3.54 x 2.83 x 2.56 inches
- Warranty: 2 Years
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
