ABB-Welcome 4.3" Video Hands-Free Indoor Station
Product Description
Simple and elegant, yet discreet, the 4.3-inch hands-free indoor station is perfect in any living environment.
Buttons:
- Communication: For receiving and ending calls
- Door opener: Opens the electric door lock (not included)
- Mute function: Switches off the microphone of the indoor station during a conversation, preventing the visitor at the front door from listening in. It can also be used to switch off the bell. The bell switches back on automatically after 10 hours.
- Programmable button: For customized function, e.g. intercom, second lock control, relay actuator control for light switch or additional lock, etc.
- Snapshot: For taking a photo of visitors at the front door during communication
- Settings: For individually configuring the device.
Features:
- 4.3" color display with on-screen display (OSD)
- 6 touch-sensitive buttons for communication, unlocking, mute, programmable button (can be set as intercom, call guard unit, etc.), surveillance and setting
- 2 photos of the visitor will be automatically stored in the picture memory for door calls during resident's absence
- Holds up to 60 photos
- Call transfer among different apartments and guard unit is available
- "Doctor" function for automatic unlock
- 5 ringtones for different call sources, i.e. from default outdoor station, secondary outdoor station, door bell, intercom or guard unit
- Supports room-to-room functions
- Broadcast simply by pressing and holding the communication button
- Surface mounting, flush mounting (flush mounted box 42311F is needed), desktop mounting (desktop bracket 42311D is needed), and cavity wall set (51021CS needed)
- The detailed user manual can be downloaded through scanning the QR code on the screen
Installation is as easy as 1-2-3. The screwless, snap-on design is used on both the outdoor and indoor stations. This makes installation an easy, quick, and enjoyable process for both surface and flush mounting.
NOTE: Connects to ABB System Controller (not included).
Tech Specs
- Part Number:

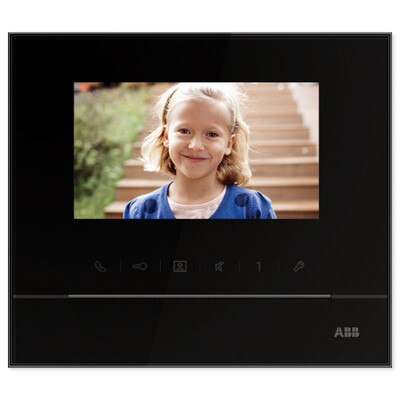

- Black: M22311-B

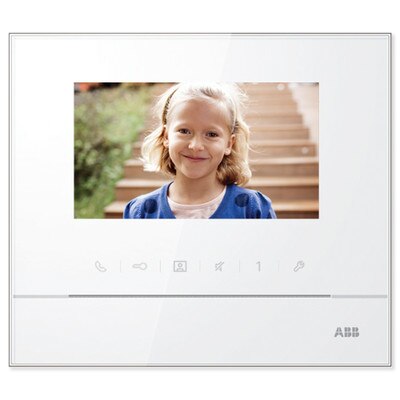

- White: M22311-W
- Display Resolution: 480 x 272
- Display Size: 4.3 inches (10.92 cm)
- Operating Temperature: 14° to 131°F (-10° to 55°C)
- Protection: IP30
- Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Bus Voltage: 20-30V
- Dimensions: 5.39 x 6.1 x 0.94 inches
- Warranty: 2 Years
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
