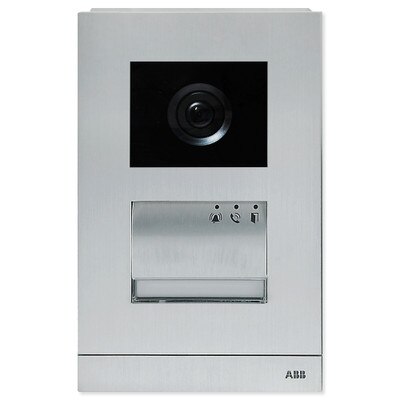

ABB-Welcome Video Outdoor Station, 1/2 Pushbutton

$855.06
SKU: ABBM21351P1A

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

ABB brings the sense – hearing, sight, and touch – together in one pleasurable communication experience. That is why the ABB outdoor stations become an integral part of users' lives.

  • Dustproof and waterproof as IP54, and vandal-proof as IK07
  • Different mode setting is possible for pushbutton, such as 1 call or 2 calls in one row
  • Surface mounting (41022F and 51022RH needed) or flush mounting (41022F needed)
  • The related tool is also provided in the package

The assembled product includes camera module (M251021C), audio module with 1/2 pushbutton (M251022A-A), and 2-module cover frame (51022CF-A).

Installation is as easy as 1-2-3. The screwless, snap-on design is used on both the outdoor and indoor stations. This makes installation an easy, quick, and enjoyable process for both surface and flush mounting.

In The Box:

  • Audio module, 1/2 pushbutton (M251022A-A)
  • Camera module (M251021C)
  • Aluminum faceplate, 2-gang (51022CF-A)
  • Install tool

NOTE: Connects to ABB System Controller (not included).

Tech Specs

  • Part Number: M21351P1-A
  • Dimensions: 7.91 x 4.92 x 1.93 inches
  • Warranty: 2 Years

Audio Module with 1/2 Pushbutton (M251022A-A)

  • Operating Temperature: -40° to 158°F (-40° to 70°C)
  • Protection: Waterproof: IP54; Vandal-proof: IK 07
  • Power Supply: Door opener (Lock-GND): 18 V 4 A impulsive, 250 mA holding
  • Floating Output: Door opener (COM-NC-NO): 30 V AC/DC, 1A
  • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
  • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
  • Bus Voltage: 20-30VDC
  • Dimensions: 2.83 x 3.82 x 0.98 inches

Camera Module (M251021C)

  • Operating Temperature: -40° to 158°F (-40° to 70°C)
  • Protection: Waterproof: IP54; Vandal-proof: IK 07
  • Bus Voltage: 20-30VDC
  • Dimensions: 2.83 x 3.82 x 1.61 inches

Aluminum Faceplate, 2-Gang (51022CF-A)

  • Material: Aluminum
  • Size: 1/2
  • Dimensions: 7.91 x 4.92 x 0.75 inches

System Capacity

  • 9 Guard Units per System
  • 60 Buildings per System
  • 250 Indoor Stations per Building
  • 9 Outdoor Stations per Building (including gate and other outdoor stations)
  • 2 Locks per Outdoor Station
