  • ABB Welcome IP Mini Video Outdoor Station with Flush Mounting Box

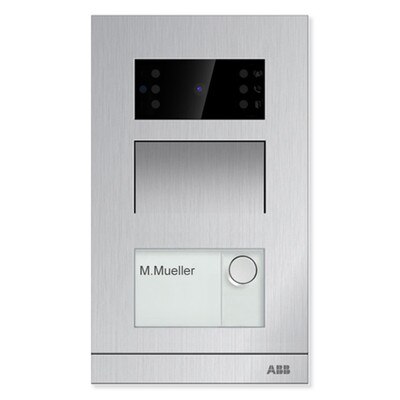

ABB Welcome IP Mini Video Outdoor Station with Flush Mounting Box

$384.60 to $390.04
SKU: ABH81363PxA

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The ABB Welcome IP Mini Video Outdoor Station with Flush Mounting Box serves as an end device for communication with the IP touch panel, guard unit, or property management. It features a 0.3M pixel camera with speaker and microphone integration, a round pushbutton module (1 button or 2 button options), ID Card Reader, and LAN connectivity with PoE. This video outdoor station comes pre-assembled with a mounting box for flush-mount installations.

  • 0.3M pixel and 100° wide angle view camera (anti-fog with inside heater)
  • Pre-assembled with flush mounting box attached
  • 1 or 2 pushbuttons with up to 2 locks connections
  • With ID card reader (64 cards)
  • Surveillance by residents or guard unit
  • Supports 3rd party access control system

In The Box:

  • Mini Video Outdoor Station
  • Flush Mounting Box (pre-attached to station)
  • Aluminum Alloy Frame
  • Manual

Notes: Requires a connection to a router (sold separately) and an Internet connection. Requires use with a video indoor station, sold separately. Installation hardware and printing on nameplate not included. If using PoE, you need to use PoE standard: 802.3af(-2003), which guarantees that each port on the switch delivers 15.4 Watts per port, enough to power all Welcome IP devices. Requires a myABB-LivingSpace account and connection to the ABB-Welcome IP Gateway (part # 83342-500-01) in order to gain remote access with your smartphone via the ABB-Welcome App.

Tech Specs

  • Part Number:
    • H81363P1-A (1 Button Model)
    • H81363P2-A (2 Button Model)
  • Dimensions:
    • Flush-Mounted: 7.08 x 4.13 x 1.7 inches (180 x 105 x 43 mm)
    • Surface-Mounted: 6.6 x 3.9 x 1.02 inches (168 x 99 x 26 mm)
  • Warranty: 2 Years

Product Docs
