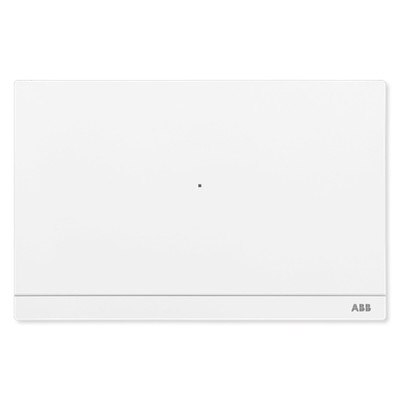

ABB-Welcome IP Smart Access Point Lite

SKU: ABD04012

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm –

Product Description

The Smart Access Point Lite is the heart of the ABB-Welcome IP system. This network access point connects all of your ABB-Welcome IP devices to your home Internet via Ethernet connections in order to configure and command individual devices. Litegram and control the Smart Access Point from your local PC or smart device. The Smart Access Point commands connected Welcome IP and select third-party devices, enables users to add and remove devices, and sharing access with other users.

  • Connects with Welcome IP and third-party devices via PoE connections
  • Commands automation, security and access control functions
  • Enhanced security with record event log and instant notification and alert
  • Supports dual-band Wi-Fi, wired, and Bluetooth connections
  • Remote control via web interface or ABB mobile app
  • Ideal for residential single home or multi-unit apartment installations

NOTES: For indoor use only. Requires an Internet connection in order to operate.

Tech Specs

  • Part Number: D04012
  • Power Supply: PoE (Power over Ethernet), 24VDC with ABB power adaptor
  • Operating Mode: LAN/Wireless access point
  • Wireless Transmission Band: 2.4 GHz/5.8 GHz
    • 802.11b/g/n:
      • 2412...2462MHz (US)
      • 2412 ... 2472MHz (EU)
    • 802.11a/n:
      • 5150 ... 5250MHz
      • 5250 ... 5350MHz
      • 5470 ... 5725MHz
      • 5725 ... 5850MHz
  • Wireless Transmission Power:
    • Max. 20 dBm@12 Mbps OFDM 2.4 G
    • Max. 20 dBm@12 Mbps OFDM 5.8 G
  • Wireless Transmission Standard: IEEE 802.11 a/b/g/n
  • Radio Interface: IEEE 802.15.4 2.4GHz radio
  • Network Connection Standard: 10/100 Mbps, auto MDI/MDI-X
  • Rating Voltage: 24 VDC
  • Operating Voltage Range: 20-27 V DC
    • Rating Current: 27 V DC, 375 mA
  • Dry Contact Input: 5 VDC, 1 mA
  • Relay Output: 30 VDC, 1 A
  • PoE Standard: IEEE802.3 af
  • Protection Type: IP30
  • Vandal Proof: IK05
  • Humidity: 0 to 95%, non-condensing
  • Operating Temperature: -10°C to 45°C (14°F to 131°F)
  • Storage Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 132 H x 204 W x 32 D mm (5.20 x 8.03 x 1.26 inches)
  • Warranty: 1 year
