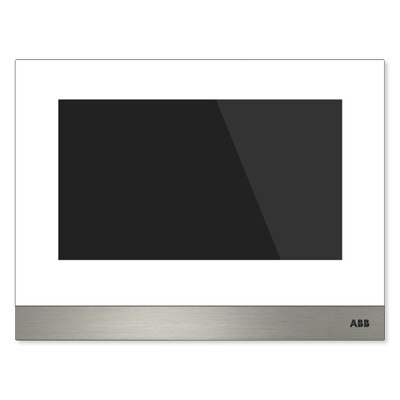

ABB-Welcome IP Touch 7 Basic, LAN + WiFi, with Induction Loop


Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

The ABB-Welcome IP Touch 7" Basic, LAN + WiFi, with Induction Loop acts as the direct control panel of the ABB-Welcome IP system. This touchscreen video station provides A/V communication with Welcome IP Indoor and Outdoor Stations and security and access control functions around your home, all through powered ethernet (PoE) and WiFi connections.

The Touch 7" Basic connects your router or network switch using a single PoE ethernet connection to communicate with outdoor stations, surveillance cameras, and additional indoor units over wired or wireless connections. The station's speaker and microphone supply intercom functionality while the programmable touchscreen simplifies control over access control and security functions within and around your home. Controllable features include triggering door lock release, switching video feed between cameras and outdoor stations, and more.

The Touch 7" Basic can be installed in single-family homes or multi-unit residential or commercial buildings. Multiple ABB-Welcome IP Touch 7" Basic Stations can be added to a single network in order to build room-to-room and/or broadcast communications. If there are multiple IP Touch 7 stations within one system, one must be programmed as the master station, and the others as subsidiary stations.

  • 7" color touchscreen displays video from system cameras and door stations
  • Touchscreen provides quick access to intercom, door entry, lighting, and surveillance functions
  • Supports room-to-room and broadcast communication functions via PoE or WiFi connections
  • Built-in induction loop for the hearing impaired
  • Supports SD card(not included) to store voice messages, photos, and ringtones

NOTES: For indoor use only. Installation hardware and SD card not included. Requires PoE over Ethernet connection to a router or network switch.

Tech Specs

  • Part Number:
    • Black: H82364-BG
    • White: H82364-WG
  • Display size: 7" capacitive touchscreen
  • Display resolution: 1024 x 600
  • Operating Temperature: -14° to 131°F (-10° to 55°C)
  • PoE Standard: IEEE802.3 af
  • Wireless transmission band: 802.11 b/g/n: for United States and Europe; 802.11a/n: for United States
  • Wireless Transmission Power:
    • Max. 20 dBm@12 Mbps OFDM 2.4 G
    • Max. 20 dBm@12 Mbps OFDM 5.8 G
  • Dimensions: 6.39 x 7.79 x 0.66 inches (198.5 x 149.8 x 17 mm)
  • Warranty: 2 Year
