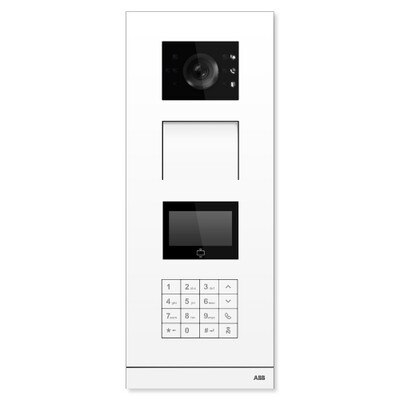

ABB-Welcome IP Video Outdoor Station with Keypad, White

$680.00 to $1,312.58

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

The ABB-Welcome IP Video Outdoor Station with Keypad, White, serves as an end device for the communication with the IP touch panel, guard unit, or property management. It features an audio/video module, keypad module, display module, transponder, and LAN connectivity with PoE.

  • HD video streaming (720P) with 130 degree angle
  • Super anti-fog coating and in-built heater
  • LED indicator for real-time status
  • Module design makes installation as easy as 1-2-3
  • Displays physical address
  • Wiegand output available
  • Opening of the door by DESFire or ID card or IC card.
  • Brushed stainless steel surface

In The Box:

  • Video/Audio Module
  • Display Module
  • Keypad with 1abc Input Module
  • Station Frame
  • Manual

Notes: Requires a connection to a router (sold separately) and an Internet connection. Requires use with a video indoor station, sold separately. Installation hardware and printing on nameplate not included. Mounting boxes for surface mounting or flush-mounted installation sold separately. If using PoE, you need to use PoE standard: 802.3af(-2003), which guarantees that each port on the switch delivers 15.4 Watts per port, enough to power all Welcome IP devices. Requires a myABB-LivingSpace account and connection to the ABB-Welcome IP Gateway (part # 83342-500-01) in order to gain remote access with your smartphone via the ABB-Welcome App.

Tech Specs

  • Part Number:
    • H81381K-W (ID Card Reader)
    • H81382K-W (IC Card Reader)
  • Rating Voltage: 24 V DC
  • Operating Voltage Range: 20-27 V DC
  • Rating Current:
    • 27 V DC, 455 mA
    • 24 V DC, 500 mA
  • Operating Temperature: -40° F to 131° F (-40° C to +55° C)
  • Display Type: LCD
  • Display Size: 2.26 x 1.26 inches (57.8 x 31.9 mm)
  • Camera Type: CMOS
  • Camera Viewing Angle: 130°
  • Resolution Ratio: HD (1280 x 720 pixels)
  • Power Supply for Door Opener: 18 V, 4A impulse, max. 250 mA holding
  • Floating Output for Door Opener:
    • 230 V AC, 3 A
    • 30 V DC, 3 A
  • Video Codec: H.264
  • Audio Codec: G.711
  • IP Level: IP 54
  • IK Level: IK 07
  • Network Connection Standard: IEEE 802.3, 10Base-T/100Base-TX, auto MDI/MDI-X
  • Dimensions: 5.32 x 13.74 x 0.69 inches (135 x 348.9 x 17.6 mm)
  • Warranty: 2 Years
