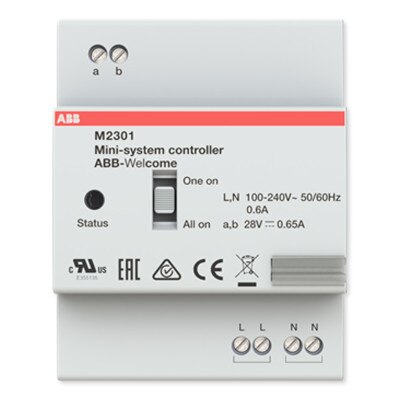

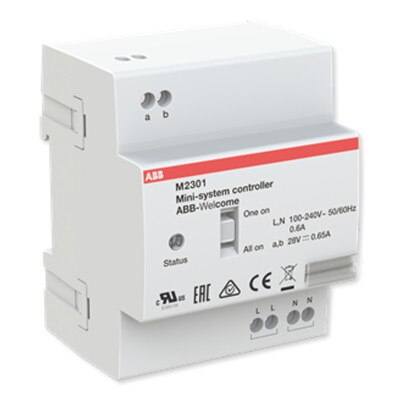

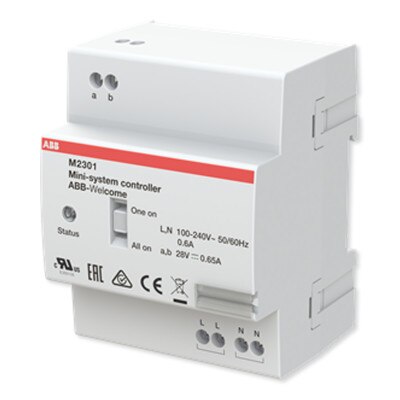

ABB Welcome Mini System Controller, MDRC, 650mA, With Updated All On/One On Setting

$147.08
SKU: ABBM2301101

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The ABB-Welcome Mini System Controller serves as the brains and primary source of power of the ABB-Welcome Door Entry systems and manages communication between 4 connected devices – outdoor stations, indoor stations, guard units, and other ABB-Welcome system components. It can also serve as an auxiliary BUS power supply.

  • Two Working Modes:
    • All on: All video indoor stations in a single apartment receive video calls from the outdoor station.
    • One on: Only the master video indoor station receives video calls from the outdoor station.
  • Serves as an auxiliary power supply when connected to the gateway in a certain mode
  • 1 LED for normal working condition indication
  • It is equipped with overheat, short-circuit and lightning protection

Tech Specs

  • Part Number: M2301-101
  • EAN: 6955891818033
  • Mounting: DIN rail mounted (DIN EN 50022)
  • Single-Wire Clamps: 2 x 22AWG ~ 2 x 16AWG
  • Fine-Wire Clamps: 2 x 22AWG ~ 2 x 16AWG
  • Mains Voltage: 100-240V, 50/60 Hz, 1A
  • Bus Voltage: 28 ± 2VDC, 0.65A
  • Size: 4U
  • Operating Temperature: -13° to 131°F (-25° to 55°C)
  • Protection: IP20
  • Flammability: UL94 V0
  • Dimensions: 3.54 x 2.83 x 2.56 inches
  • Warranty: 2 Years
